Overview/Description

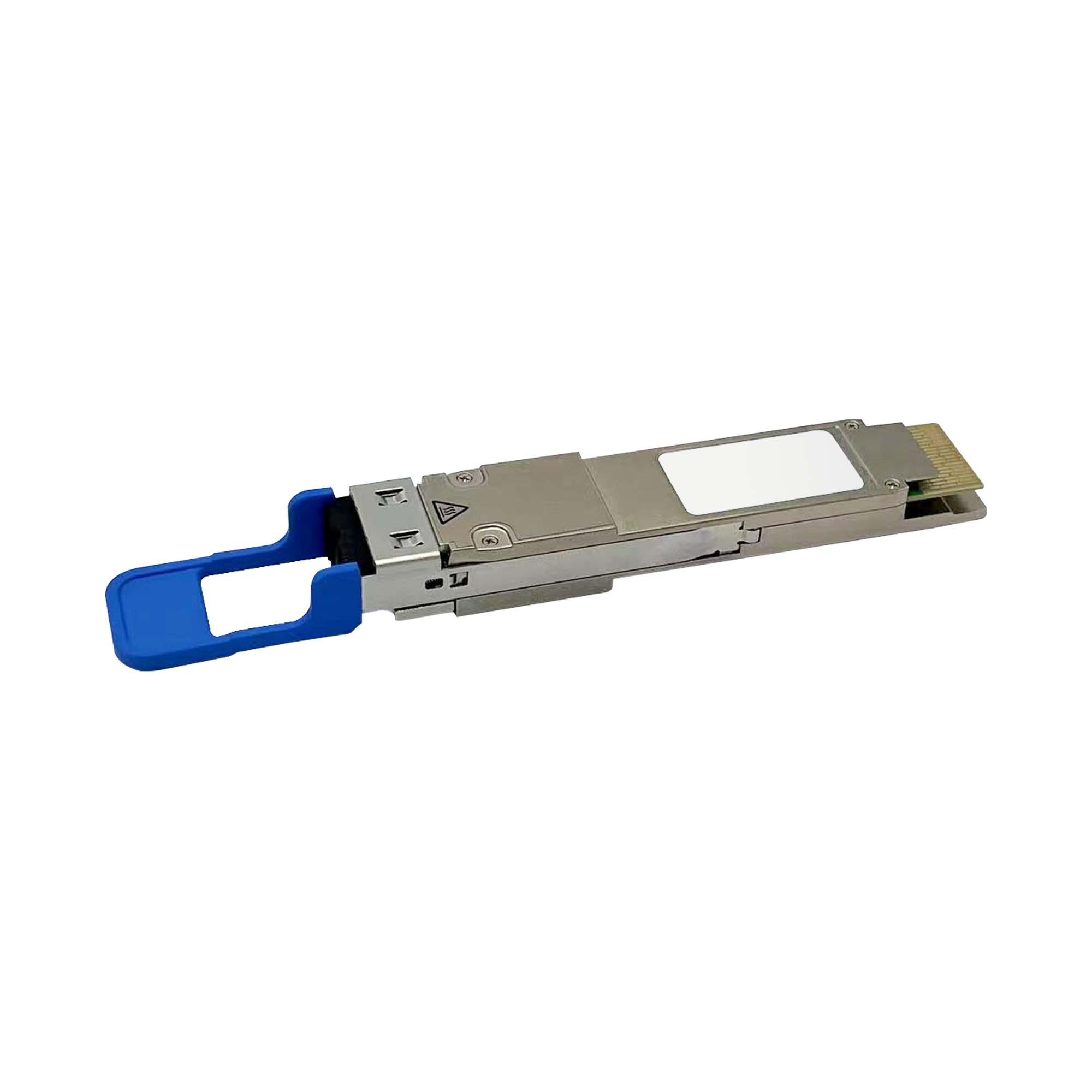

This product is a 400 Gb s Quad Small Form Factor Pluggable double density ( QSFP DD )
optical module designed for 10 km optical communication a pplications . The module converts
8 channels of 50 Gb s PAM 4) electrical input data to 4 channels of CWDM opti cal signals
and multiplexes them into a single channel for 4 00 Gb s optical transmission Reversely ,
on the receiver side , the module optically de multiplexes a 400 Gb s optical input into 4
channels of CWDM optical signals , and converts them to 8 channels o f 50 Gb s PAM 4)
electrical output data
Specifications
QSFP DD MSA compliant
4 CWDM lanes MUX DEMUX design
100 G Lambda MSA 4 00G LR4 Specificat ion compliant
Up to 10 km transmission on single mode fiber (S MF ) with FEC
Operating case temperature : 0 to 70 o C
8 x 53.125 Gb s electrical inte rf ace (40 0GAUI 8)
Data Rate 106.25 Gbps (PAM4) per channel
Maximum power consumption 12 W
Duplex LC connector
RoHS compliant
