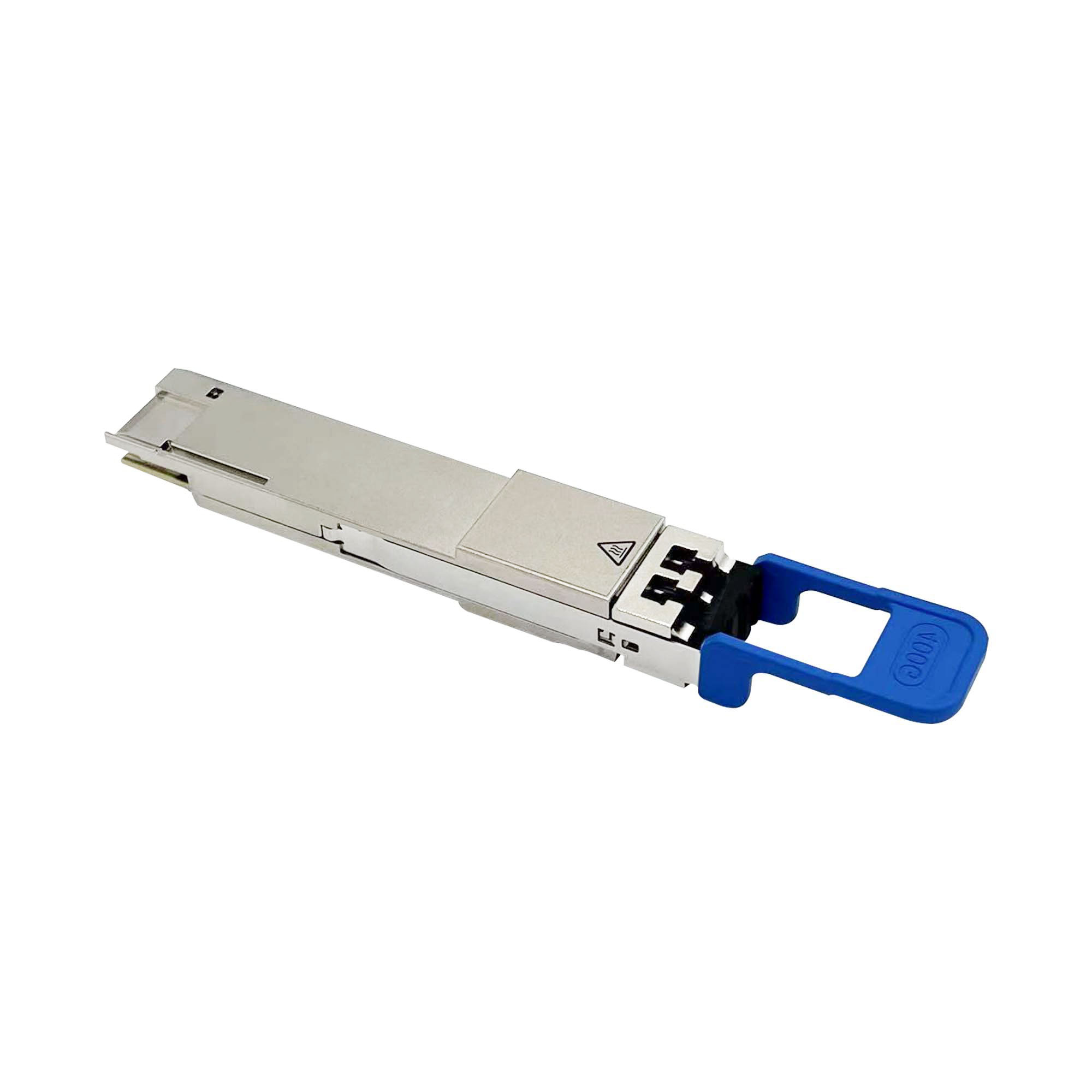

400G QSFP-DD LR4


Overview/Description

This product is a 400 Gb s Quad Small Form Factor Pluggable double density ( QSFP DD )

optical module designed for 10 km optical communication a pplications . The module converts

8 channels of 50 Gb s PAM 4) electrical input data to 4 channels of CWDM opti cal signals

and multiplexes them into a single channel for 4 00 Gb s optical transmission Reversely ,

on the receiver side , the module optically de multiplexes a 400 Gb s optical input into 4

channels of CWDM optical signals , and converts them to 8 channels o f 50 Gb s PAM 4)

electrical output data


Specifications

QSFP DD MSA compliant

4 CWDM lanes MUX DEMUX design

100 G Lambda MSA 4 00G LR4 Specificat ion compliant

Up to 10 km transmission on single mode fiber (S MF ) with FEC

Operating case temperature : 0 to 70 o C

8 x 53.125 Gb s electrical inte rf ace (40 0GAUI 8)

Data Rate 106.25 Gbps (PAM4) per channel

Maximum power consumption 12 W

Duplex LC connector

RoHS compliant
