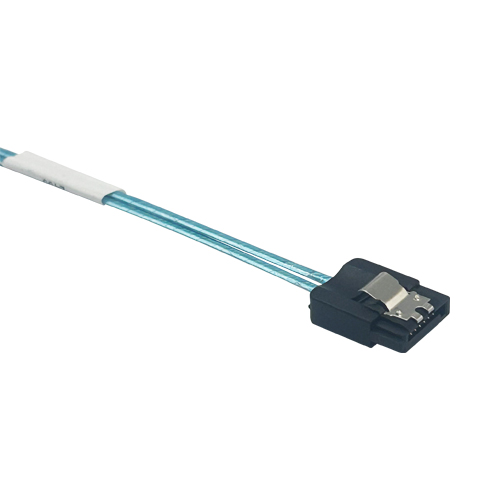

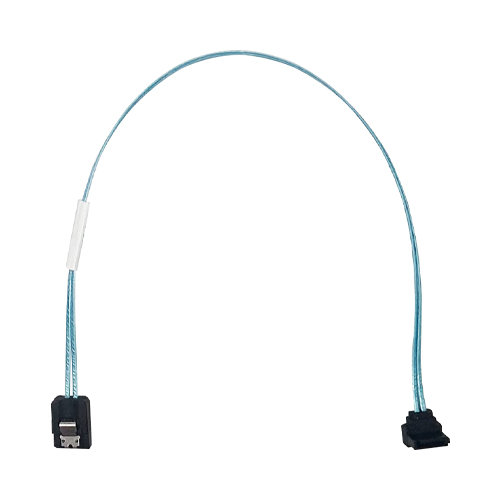

SATA Cable products are available to meet SATA association requirements, and are available in a variety of styles and options.
Specifications
Pitch(mm): 1.27
Number of Contacts : 7
Gender: Receptacle / Plug End
Termination Interface: Solder For Cable
Current-Maxinum per contact: 1.5A
Voltage Rating: 12V DC
Dielectric Withstanding Voltage: 250V AC
Durability: 50 Mating Cycles
Plating Contact area: See Customer Drawing
Temperature Range - Operating: -25°C to +85°C
Applications Target Markets
Server ,Storage, RAID Systems
Workstation
Switch
SATA/ SAS/ PCIe Device
High-Performance Computing (HPC)
