Overview/Description

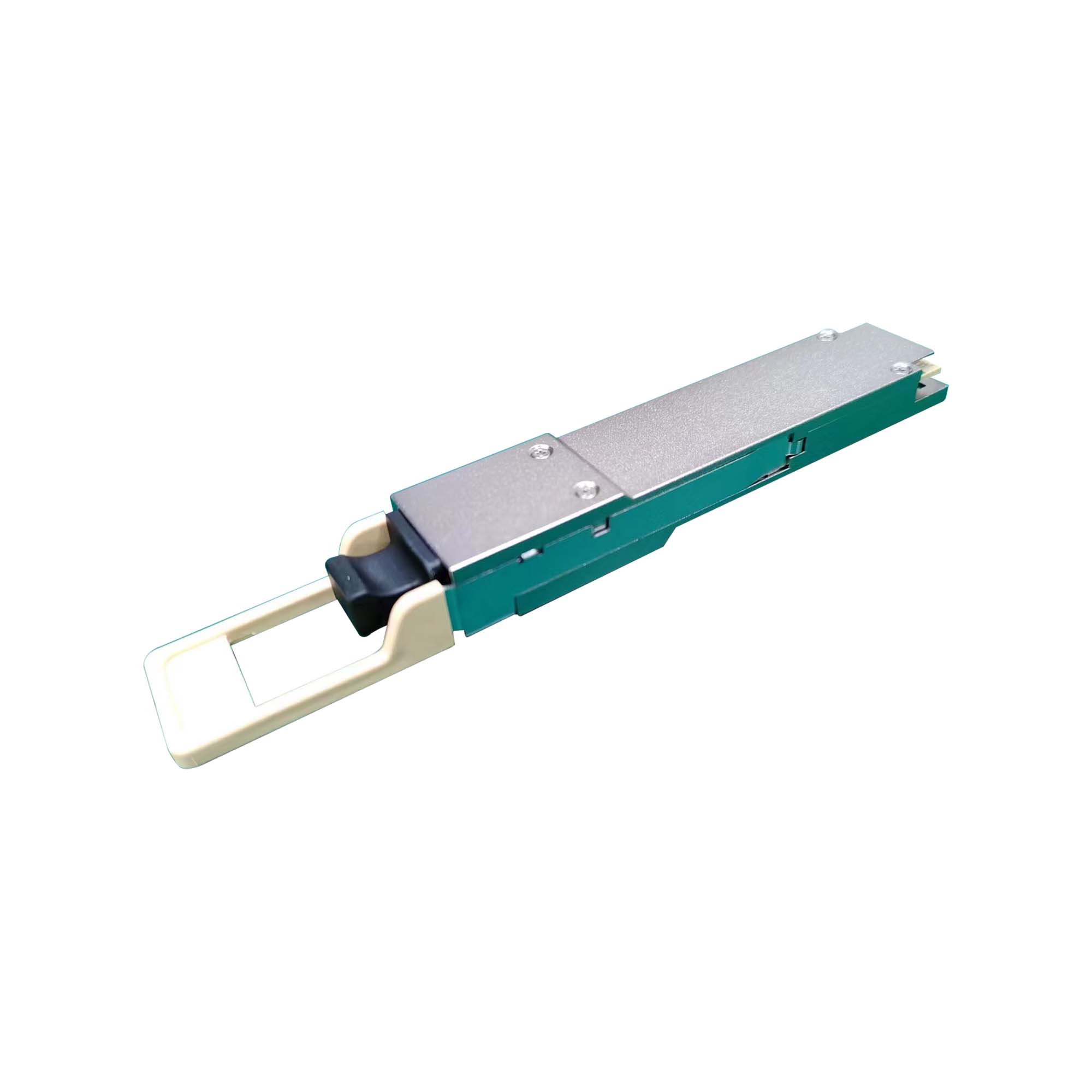

400G-SR4 modules offer 4 independent transmit and receive channels. Each is capable of 100Gb/s operation for an aggregate data rate of 400Gb/s over 100m of OM4/OM5 multi-mode fiber.
Specifications
• Single MPO12/APC receptacle
• 4 channels full-duplex transceiver module
• Single 3.3V power supply
• Maximum power consumption
• Link distance up to 100m over OM4/OM5
• 4 x 100Gb/s 850nm VCSEL-based transmitter
• Built-in digital diagnostic functions
• I2C management interface
• Compliant to IEEE 802.3bs 400GAUI-4
• Compliant to IEEE 802.3cd 400GBASE-SR4
• Compliant to CMIS4.0
• Compliant to RoHS
Applications
Target Markets
Data Center switch
400G BASE-SR4 Ethernet
