Medical customized cable assembly_B

Overview/Description

JPC is dedicated to provide flexible medical assembly solutions satisfy the needs of your equipment. We develop custom-directed products for both standard applications as well as OEM specific. Our varied product offerings, coupled with strong expertise team, allow us to create products that meet the stringent standards set by original design of medical instrument.

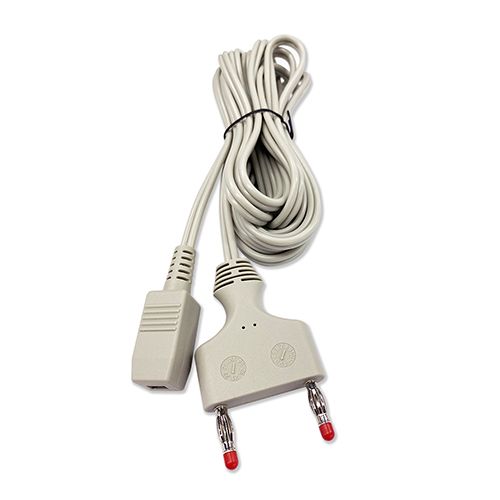

Customized medical ESU (Electro Surgical Unit ) cable assembly

Specifications

1. Isolation : AC 4000V, High frequency withstand voltage: 3800V

2. Insulation: PVC
3. Conductor: Tinned Copper
4. Rated Temperature : 80℃
5. AWG: 22
6. Construction (mm): 17/0.16±0.008
7. Diameter(mm): 0.76
8. Nom. Thickness (mm): 0.82
9. Diameter(mm): 2.80±0.10*5.60±0.15
10. Surface: Plane
11. Max. Conductor DC Resistance at 20℃ (Ω/km): ≤59.4
12. Dielectric Strength (kv/1min): 4.0
13. Tensile Strength (kgf/mm2): ≧1.05
14. Elongation (%) ≧100
15. Bending Test：500g,±90°,30times/minute, R=12.7mm,200times,no open
16. 2011/65/EU Restriction on Hazardous Substances(RoHS).

Applications
Target Markets

Electrosurgical unit
