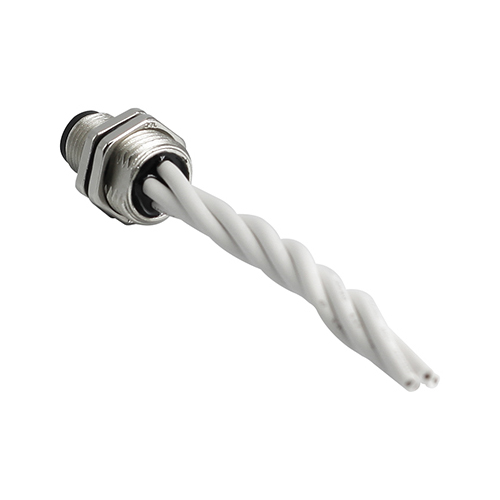

M12 S Code
Overview/Description
The M series is meticulously engineered for industrial process measurement and control, meeting IEC standards for optimal performance and reliability. It offers secure data transmission and excellent power transmission, making it a trusted choice in various industrial environments.
Additionally, the M series is ideal for compact designs where environmental protection and stable connections are crucial, ensuring it meets diverse user needs without compromising performance or safety.
Specifications
1. Alternate Position(Code): S
2. Shell Size: M12
3. Mounting Thread Size(Receptacle Screw Size): M16
4. Material: Metallic
5. Shielding: Non-Shielded
6. Pin/Pos No.: 2+PE/3+PE
7. Connector Type: Receptacle With Wire
8. Connector Gender: Male
9. Contact Gender: Male
10. Current Rating: 12A
11. Operating Voltage: 630V AC/DC
12. Back Shell: Straight
13. Fasten Style By Nut: Rear
14. Mating Style: Screw
15. IP Rating: IP67
16. Mated/Unmated Waterproof: Mated
17. Wire/Cable Spec.: UL 10070
18. Wire Gauge: 16 AWG
19. Outer Jacket Material: PVC
20. Wire/Cable Length(mm): 150/300/500
Applications
Target Markets
1. Industrial Automation
2. Robotics
3. Industrial Control/Measurement System
4. Machine Tools
5. Sensor
6. Servo Motor
7. PLC
8. Machine Vision
9. Robotic Arm
10. LiDAR
11. Autonomous Guided Vehicle
12. Conveyor System
