Overview/Description

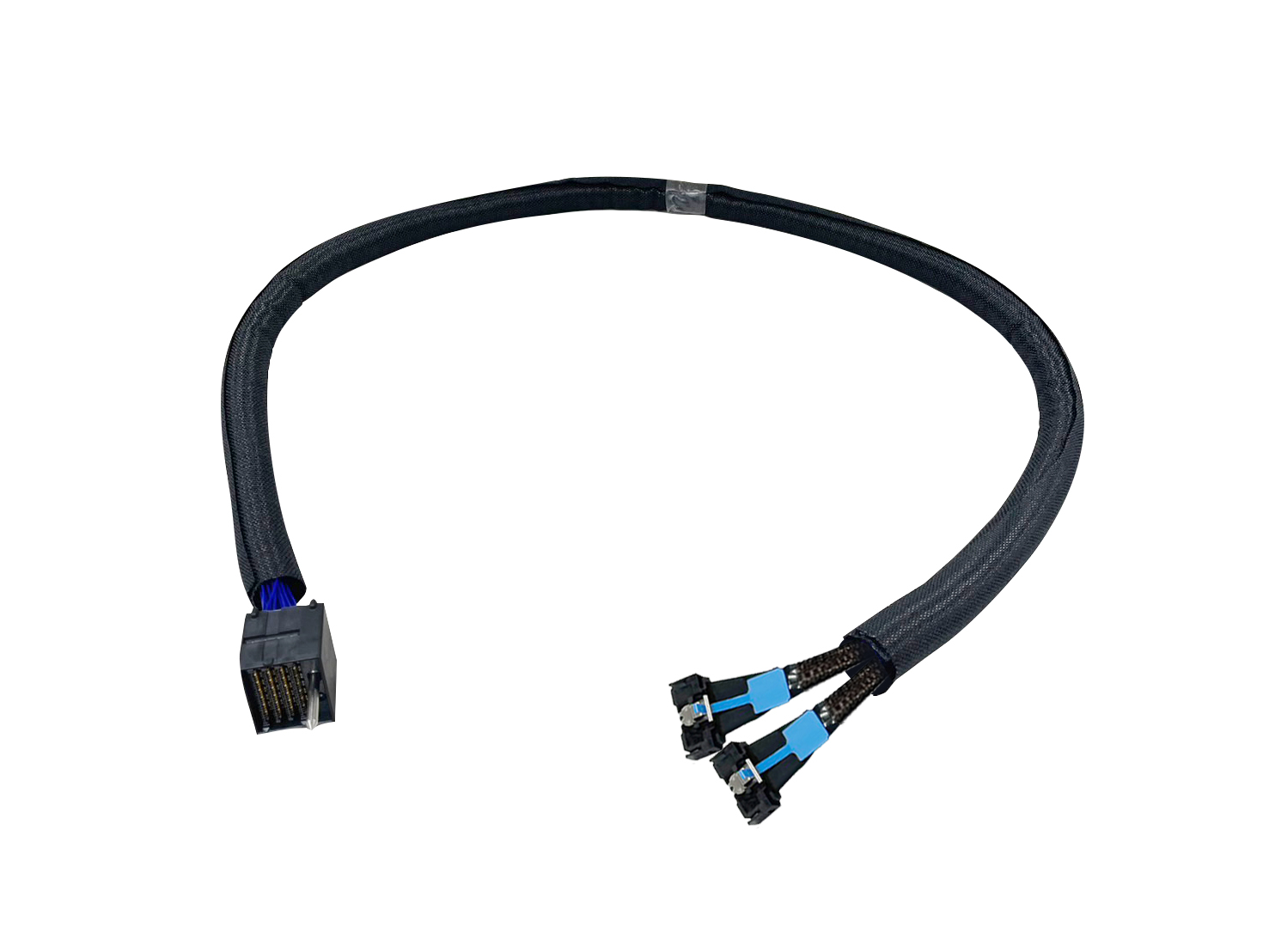

This cable assembly supports PCIe® 6.0/CXL® 3.1 (64 Gbps PAM4) applications, utilizing Flyover® Technology to route signals via ultra-low skew twinax cable instead of through lossy PCB. Its co-extruded, ultra-low skew twinax design ensures improved bandwidth and reach, and it offers end options including vertical latch and right angle.
Specifications
MCIO
• Pitch(mm): 0.6
• Number of Contacts : 74
• Gender: Plug End
• Termination Interface: Solder For Cable
• Current-Maxinum per contact: 0.5A
• Voltage Rating: 30V DC per contact max
• Dielectric Withstanding Voltage: 300V DC
• Durability: 200 Cycles
• Plating Contact area: See Customer Drawing
• Temperature Range - Operating: -25°C to +65°C
