CAT6 28AWG SuperFlat UTP Cable

Specifications

•  Cat6 28AWG Flat Cable with Low profile connector size 20mm

•  10mm Bend Radius for most flexible cable routing

•  20% lighter than regular round CAT6

•  Compliant with EIA/TIA-568-C.2

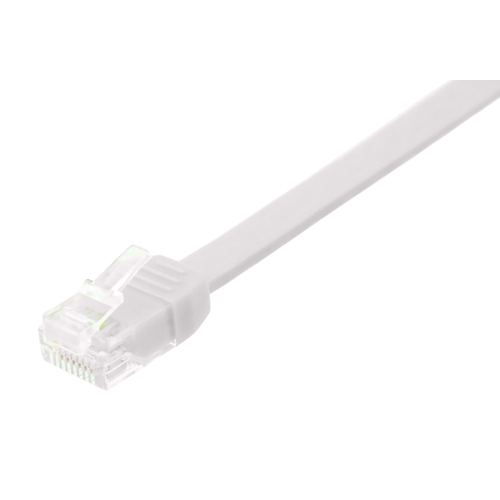

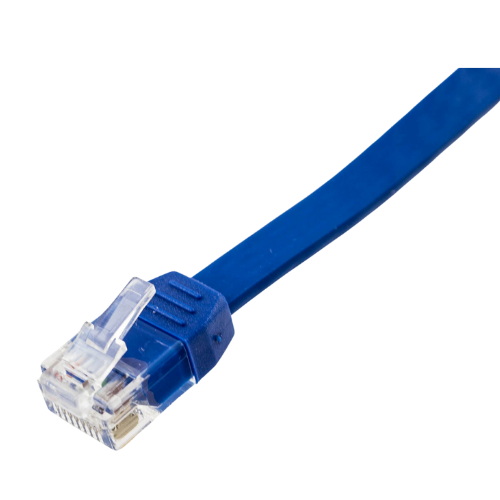

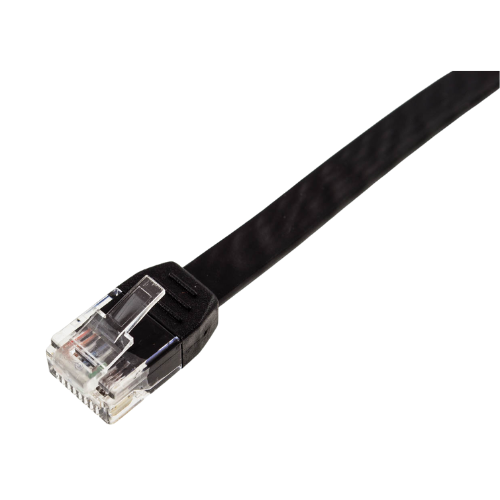

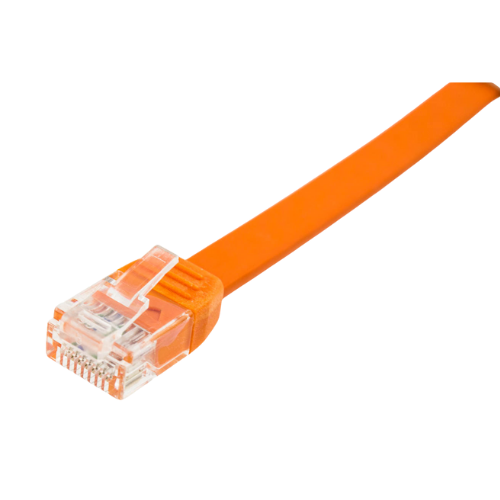

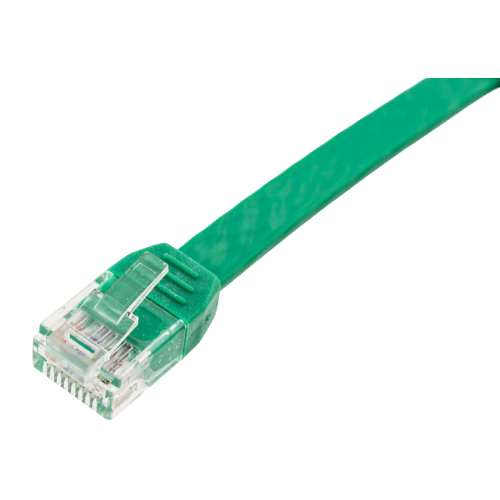

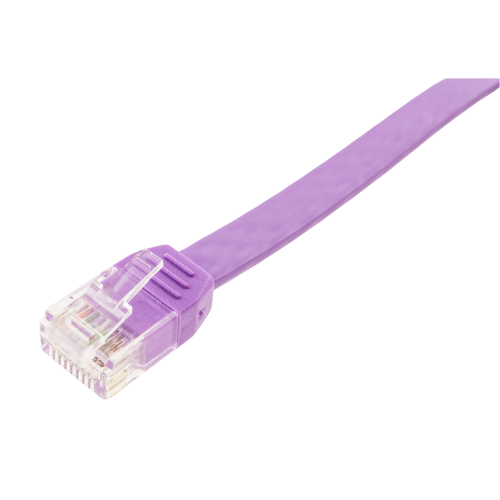

•  7 cable colors available

•  Molded boots with color matching cable

•  Custom lengths available at 1/2 ft increments (contact for details)

•  Service available for labeling and bundling cables

Overview/Description

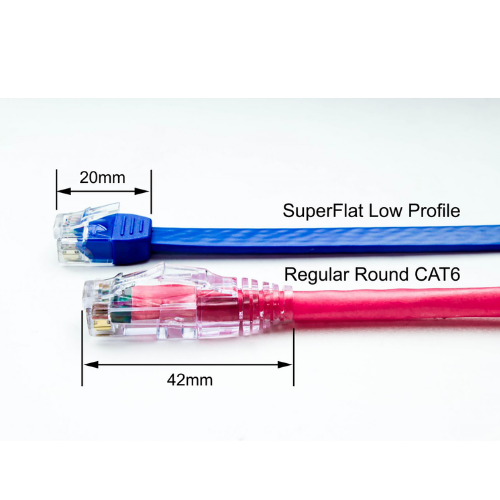

•  Mini-RJ45 molded Connector (20mm vs. 42mm for regular RJ45 connector) to allow cable bending at 90 degrees vertically at the connector. It is ideal for environments restrained by space

•  Unique flat design to give 10 mm of cable bend radius, as opposed to 40 mm for regular CAT6, for improved cable routing flexibility and rack airflow

•  Lighter weight to reduce strain on the network port to which the cable is connected. It is 30% lighter than the regular round CAT6 cable

Applications Target Markets
