Overview/Description

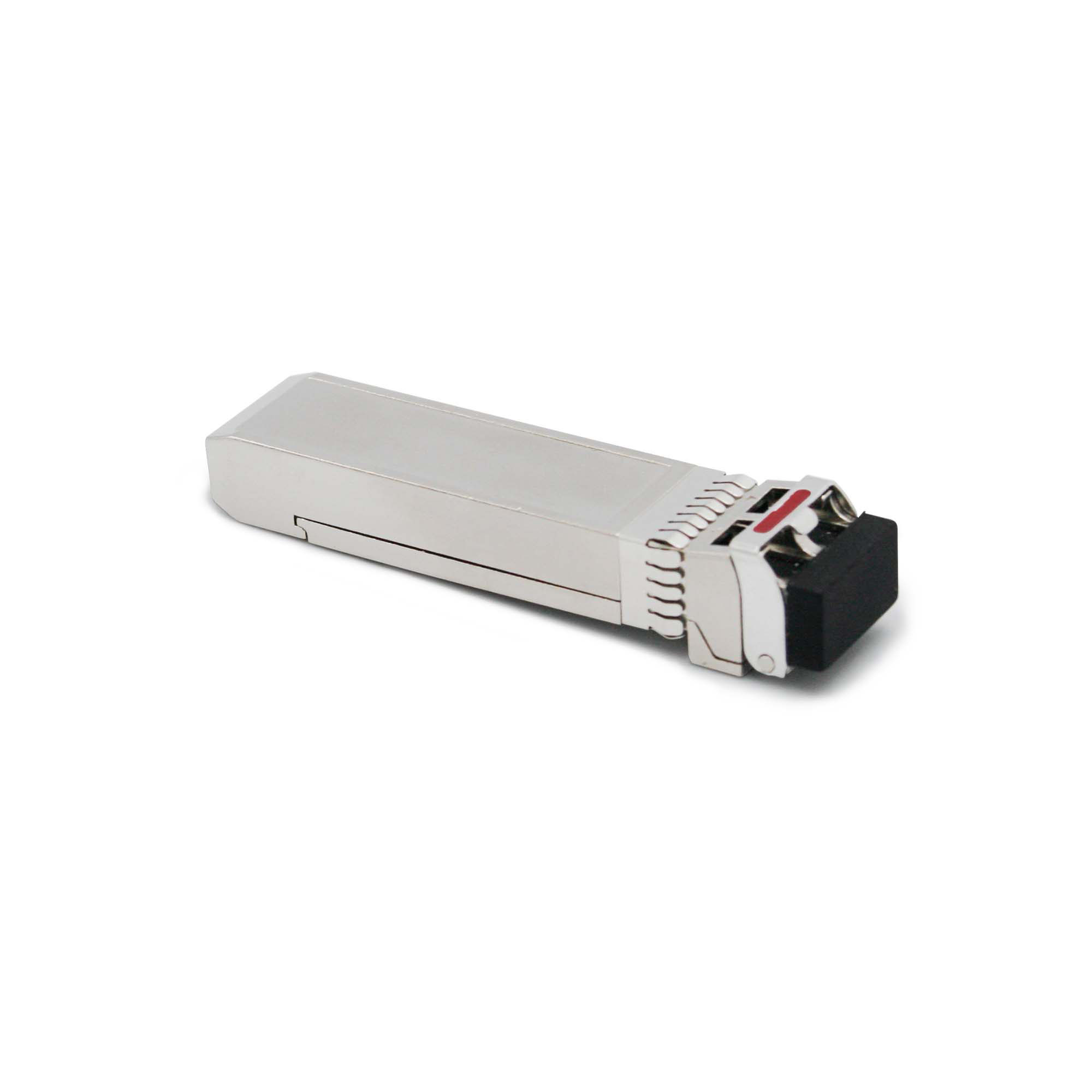

The SFP28 Transceiver is designed for use in Ethernet/eCPRI/CPRI links up to 25.78 Gb/s data rate and up to 40 km link length. They are compliant with SFF8472, SFF-8431, SFF-8432. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
Specifications
• Class 1 laser safety certified
• Operating data rate up to 25.78Gbps
• Up to 40km transmission distance
• High sensitivity APD photodiode and TIA
• LC duplex connector
• Hot pluggable 20pin connector
• Low power consumption <2.0 W
• Commercial temperature range: 0°C to 70°C
• Single +3.3V±5% power supply
• Compliant with SFF-8472
• Fully ROHS Compliant
Applications
Target Markets
25GE LR/ER
CPRRI Option 10/e CPRI
