Overview/Description

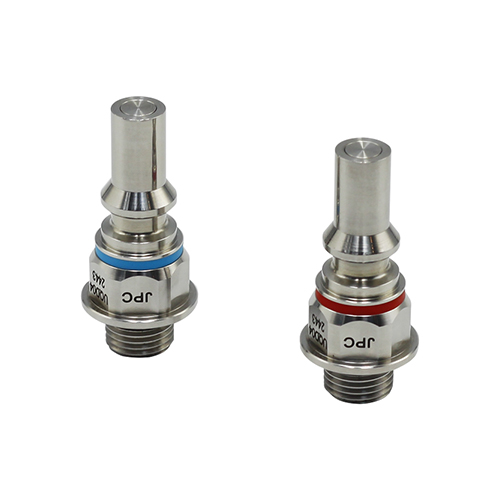

JPC’s UQD04 Universal Quick Disconnect is an OCP-compliant liquid cooling connector designed for data centers and high-performance computing. Engineered for thermal management applications, it offers multiple termination options and color-coded identification (red & blue), ensuring easy installation and enhanced system reliability.
View on OCP Marketplace: JPC Universal Quick Disconnect (UQD)
Specifications
l Max. Fluid Loss: ≤0.025 ml (Disconnection/Hot-Swapping)
l Max. Operating Pressure: 100 psi
l Min. Burst Pressure: 300 psi
l Operating Temperature: -20°C to 120°C
l Min. Flow Coefficient (Cv): 0.8 (water flow)
l Material: SUS316L (Metallic Body), EPDM (Seal)
l Termination Options: Barb, thread, coupling nut
Applications
Target Markets
