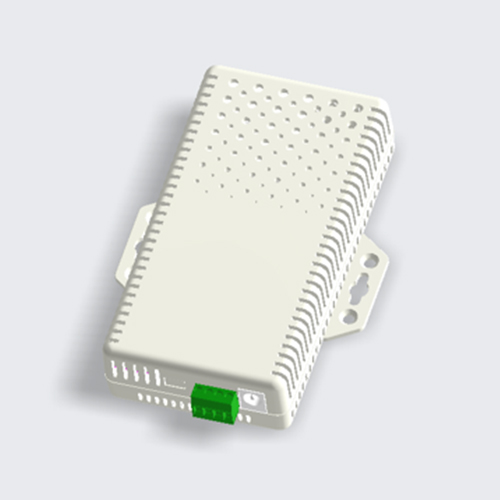

Air Quality, Transmitter
Overview/Description
The Air Quality Monitor provides sensing options included temperature, humidity, CO2, PM2.5, PM10, TVOC measurements. Equipped with industrial standard RS485 Modbus RTU signal output, it is widely used in HVAC systems and BMS systems for acquiring the reliable indoor air quality measurement. The compact and minimal design make the sensor configuration more flexible and easier for the system integrator. The recommended height of installation is 1 to 2 meter(s) above the floor level.
Specifications
|
Temperature |
Humidity |
PM2.5 |
PM10 |
CO2 |
TVOC |
|
|
Measurement range |
-10 ~ 50 ℃ |
0 ~ 95 %RH |
0 to 1000μg/m3 |
0 to 1000μg/m3 |
0 to 2,000ppm |
0 to 50ppm |
|
Accuracy |
± 0.3 ℃ |
± 3 %RH |
0 ~ 100μg/m3 (±10μg/m3) , 100 ~ 1000μg/m3 (±10%) |
0 ~ 100μg/m3 (±25μg/m3) , 100 ~ 1000μg/m3 (±10%)) |
±50ppm and 5% |
±5% FS |
|
Operating Principle |
CMOS |
CMOS |
Optics |
Optics |
PASens® |
CMOS |
|
Sensirion SHT40 |
Sensirion SHT40 |
Sensirion SPS30 |
Sensirion SPS30 |
Sensirion SCD40 |
Sciosense ENS160 |
|
|
Date interface |
RS485 / Bluetooth (option) |
|||||
|
Power |
12Vdc ~24Vdc / 0.5A |
|||||
|
Operating Env. |
0 to 50 °C / lt; 90% RH (Non-condensing) |
|||||
|
Size |
85*65*28mm (TBD) |
Applications
Target Markets
1. HVAC Systems.
2. BMS Systems.
