25G DWDM

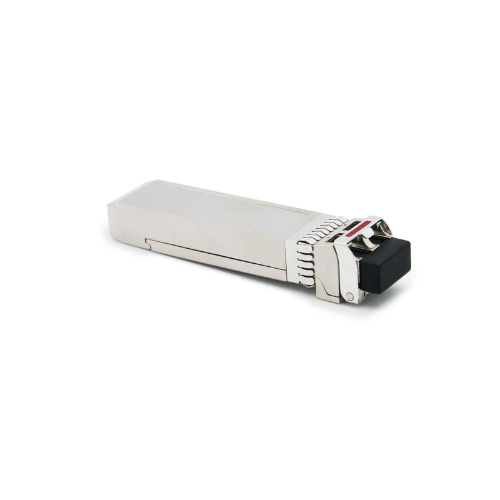

25G SFP28 DWDM

Overview/Description

25G SFP28 DWDM optical transceivers adopt LC optical ports and are compatible with IEEE802.3by&CC, SFF-8472 and other standards. These products are mainly applied in Data Centers, 5G networks, 25G Ethernet, Fiber Channel and other environments.

Specifications

•  Hot-pluggable SFP+ footprint
•  Supports 25.78Gb/s Ethernet and 24.33Gb/s CPRI 10 Up to 15km link length
•  DWDM in 100GHz, ITU-based channel spacing (C-Band)
•  -40 / 85°C operating temperature range; module supports cold start at -40°C
•  Single 3.3V power supply
•  Monolithic MZM Tunable TOSA
•  Retimed electrical interface
•  Dual LC connector duplex
•  Built-in digital diagnostic functions
•  RoHS compliant

Applications
Target Markets

DWDM 15km point to point links: 25GbE Ethernet 24.33Gb/s CPRI 10
