Overview/Description

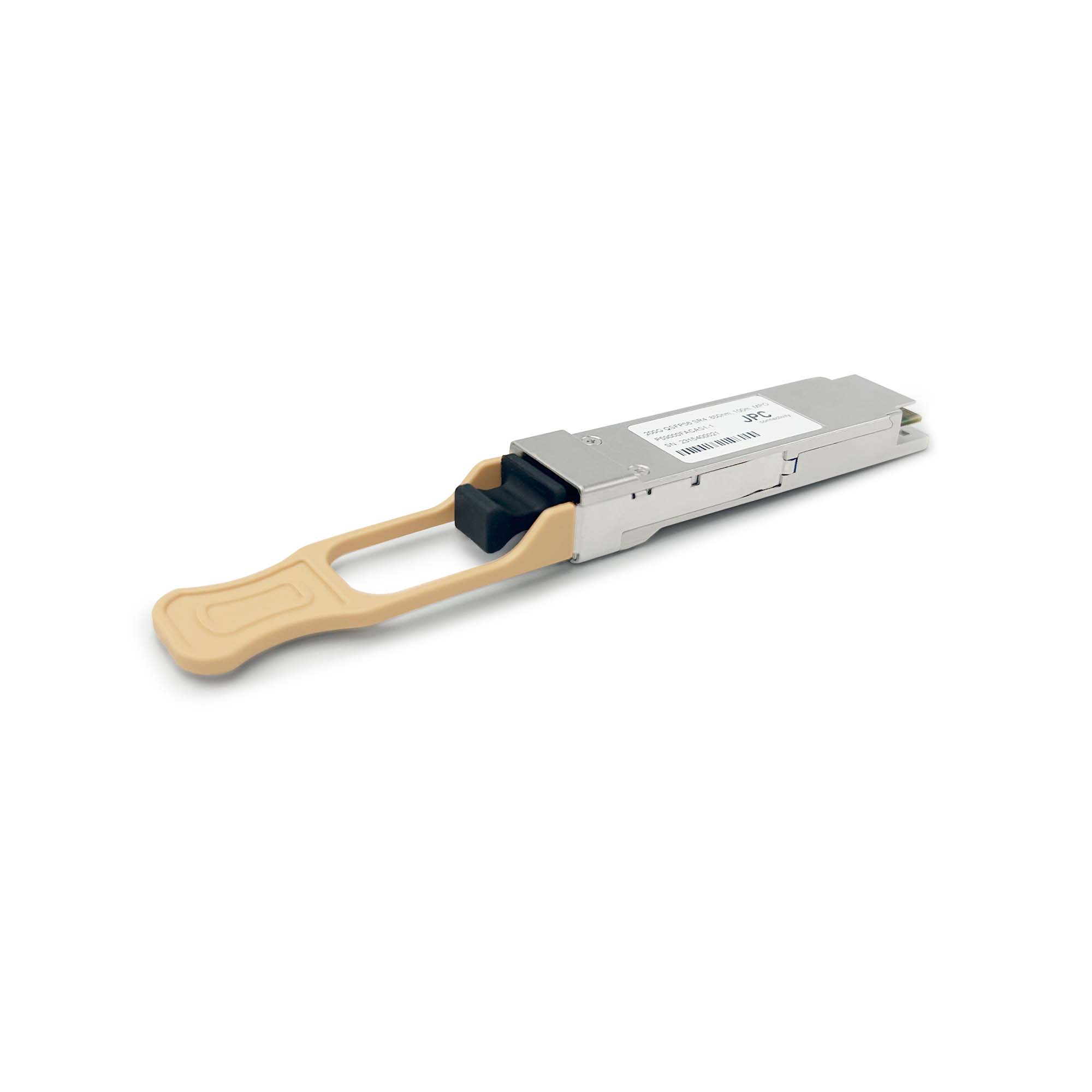

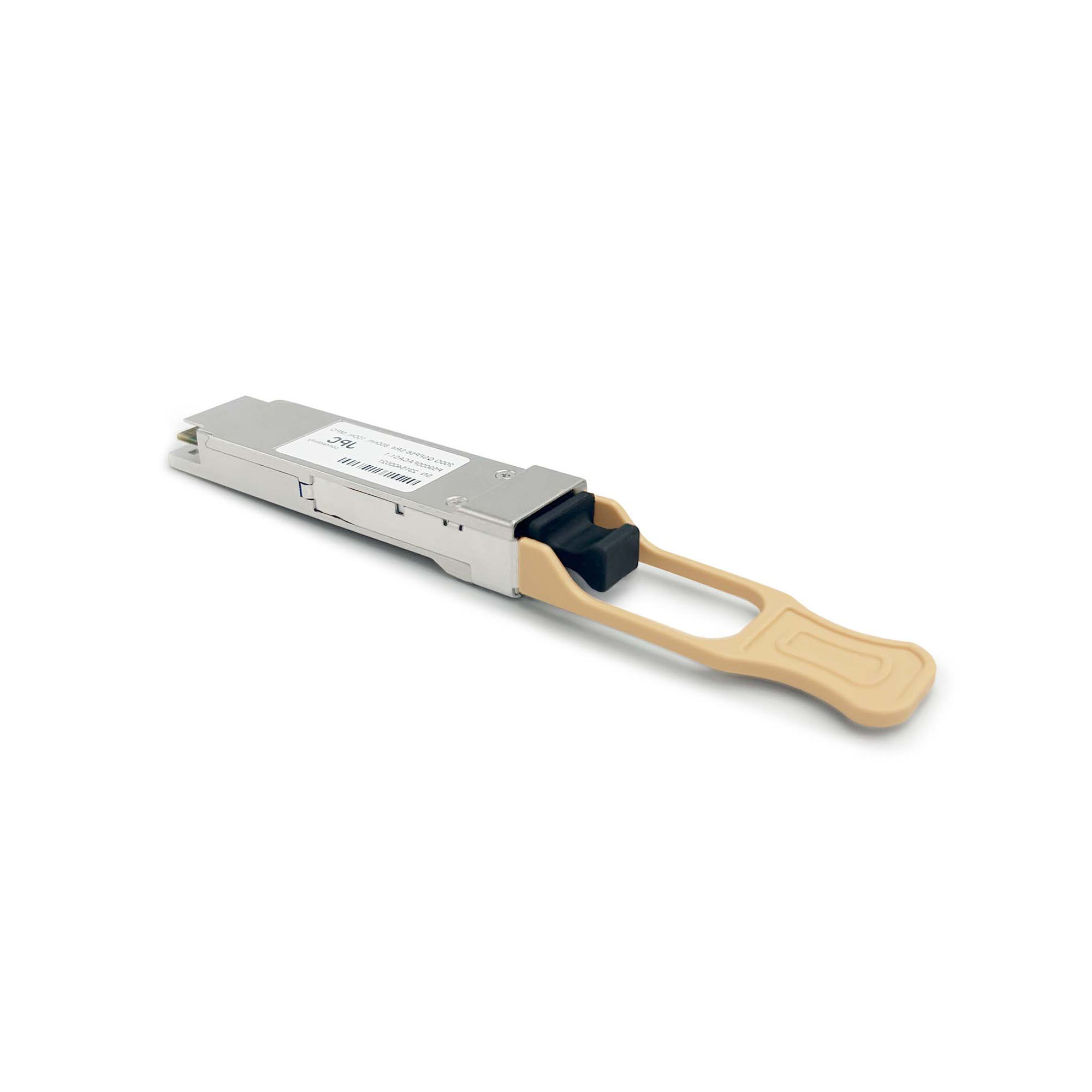

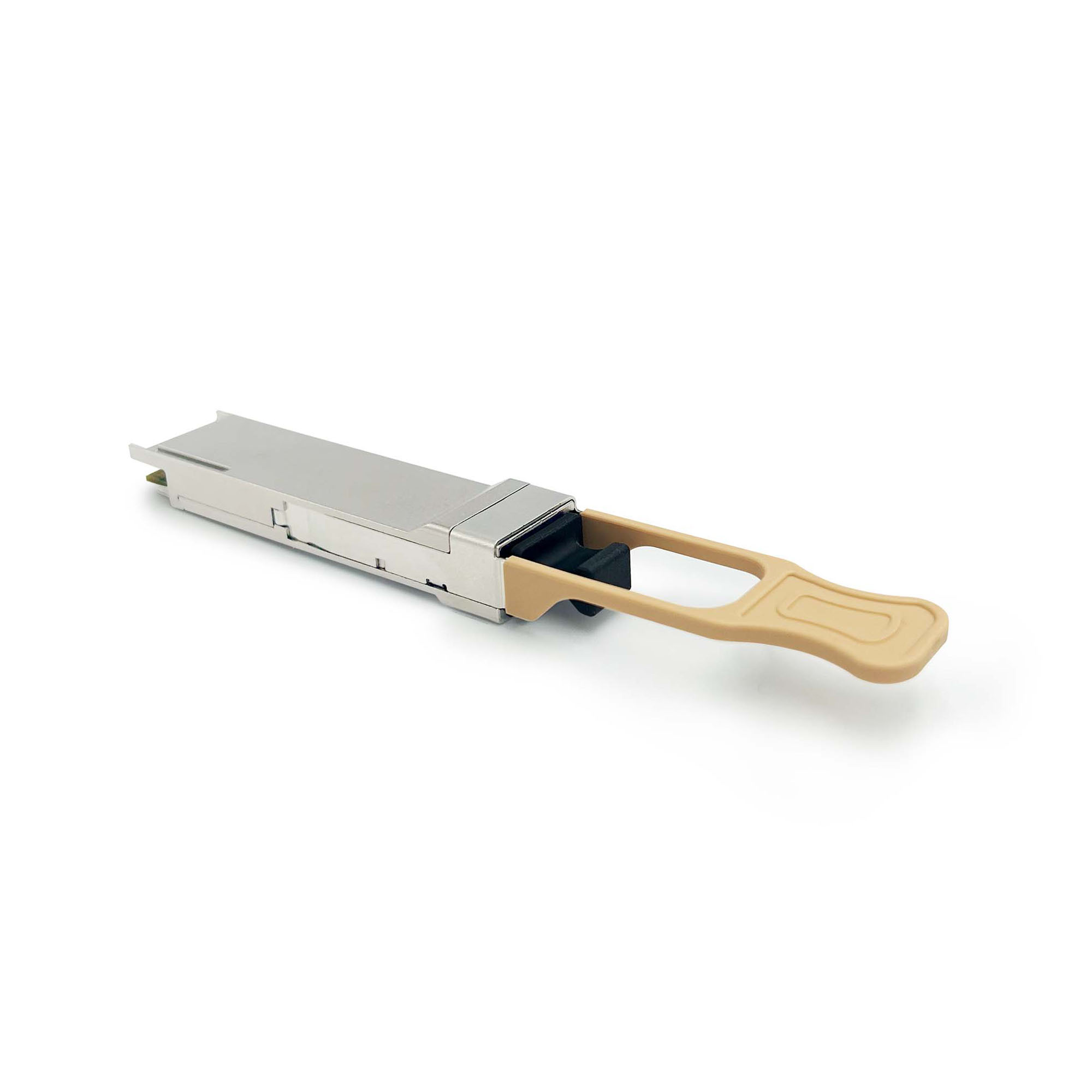

The JPC QSFP56 SR4 Optical Transceiver Module is designed for 200GBASE InfiniBand application throughput over MTP/MPO-12 connectors using OM4 multimode fiber (MMF) with a wavelength of 850nm up to 100 meters. The transceiver is compliant with QSFP56 MSA, 200GBASE-SR4, SFF-8636 standards. It is suitable for Infiniband HDR applications.
Specification
Supports 212.5Gb/s aggregate bit rate
4x26.5625GBd PAM4) electrical interface
VCSEL Transmitter
PIN and TIA array on the receiver side
Hot-pluggable QSFP56 footprint
Low power Consumption
Support Digital Diagnostic Monitor interface
+3.3V single power supply
Case operating temperature (Commercial) 0°C to +70°C
Application/ Target Market
200Gb/s InfiniBand HDR Systems
200GBASE-SR4 Ethernet
Other Optical Links
QSFP MSA
IEEE802.3cd
SFF-8636
