100G ZR4

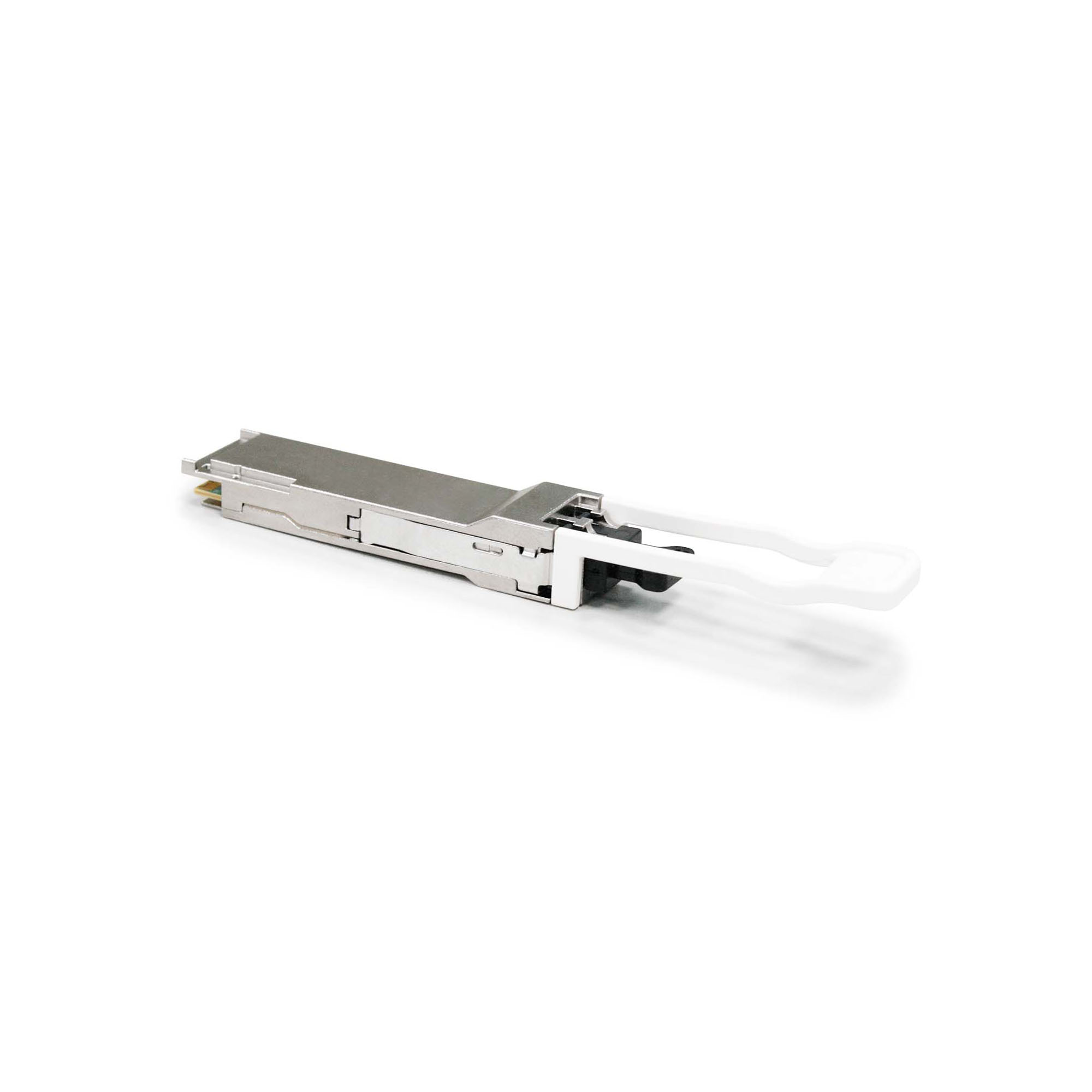

100G QSFP28 ZR4

Overview/Description

QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links over single mode fiber. They are compliant with SFF-8665, INF-8438i and IEEE 802.3ba 100GBASE-ZR4. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP28 MSA.
100G QSFP28 ZR4 Datasheet-STD Rev 01.pdf

Specifications

•  Compliant with QSFP28 MSA
•  Up to 80km transmission on single modefiber
•  4channels full-duplex transceiver modules
•  Transmission data rate up to 27.95Gbps Per channel
•  4 X 25/28G LAN-WDM EML Integrated TOSA Cooling transmitter
•  4 X PIN+SOA Receivers
•  LC duplex connect
•  Single +3.3V power supply
•  DDM function implemented
•  2 Wire Serial Interface for module management
•  Maximum power dissipation<6W
•  Operating temperature range: 0℃ ~ 70℃
•  RoHS compliant (lead free)

Applications
Target Markets

100GBASEE-ZR4 Ethernet
Telecom Networking
