100G ER4

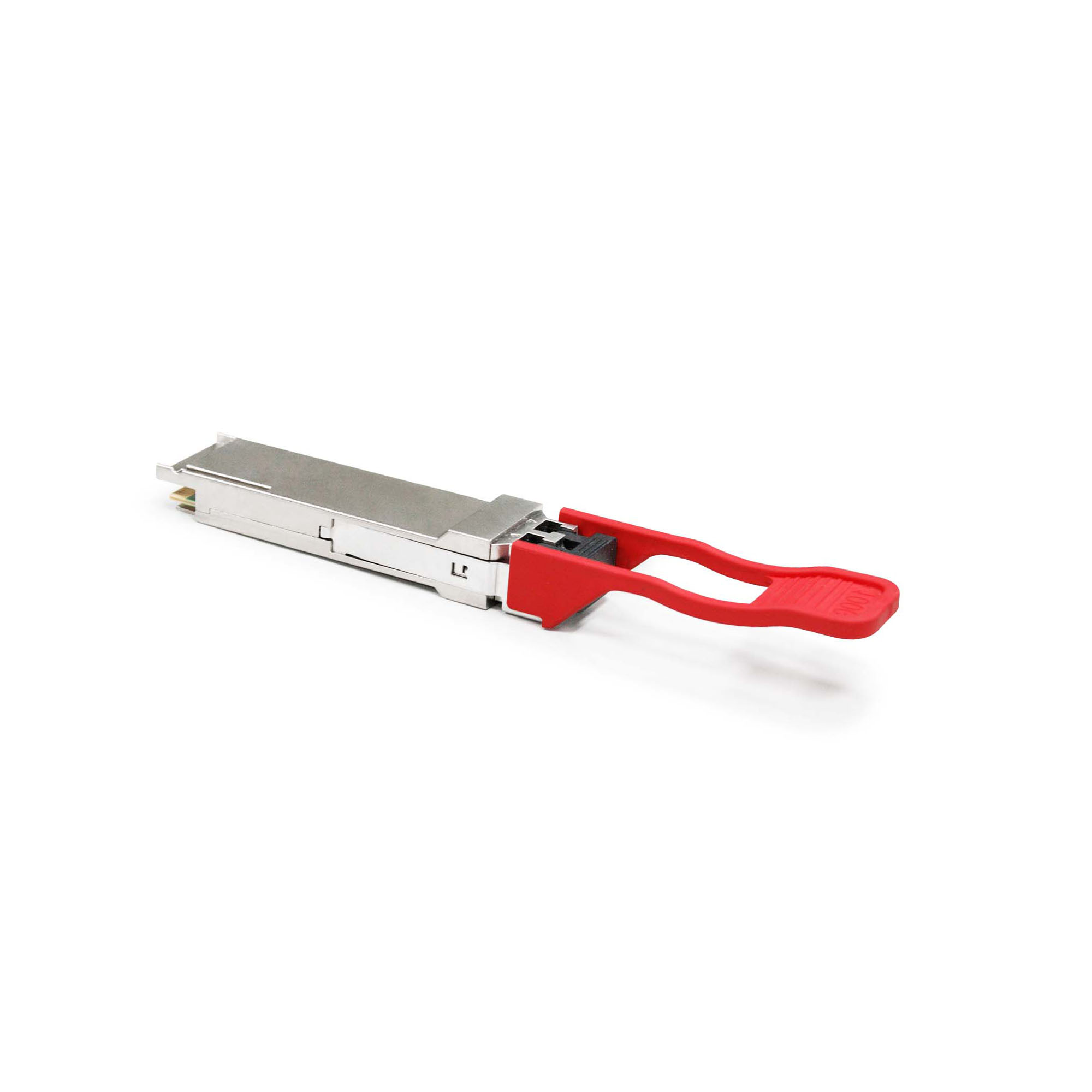

100G QSFP28 ER4

Overview/Description

QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links over single mode fiber. They are compliant with SFF-8665, INF-8438i, IEEE 802.3bm,100G 4WDM-40 MSA. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP28 MSA.
100G QSFP28 40km ER4 C-temp Datasheet-STD Revw 01.pdf

Specification

Up to 30km reach for G.652 SMF without FEC
Up to 40km reach for G.652 SMF with FEC
Cooled 4x25Gb/s LAN WDM EML TOSA with optical MUX
4x25G Electrical Interface
Single +3.3V power supply  DDM function implemented
2 Wire Serial Interface for module management
Maximum power dissipation<5W
Operating temperature range: 0oC ~ 70 oC
Compliant with RoHS6

Application/ Target Market

Compliant with QSFP28 Standard: SFF-8665, SFF-8636
Compliant with 100G 4WDM-40 MSA technical specification rev 1.0
High speed I/O electrical interface (CAUI-4) compliant with IEEE 802.3bm
