Overview/Description

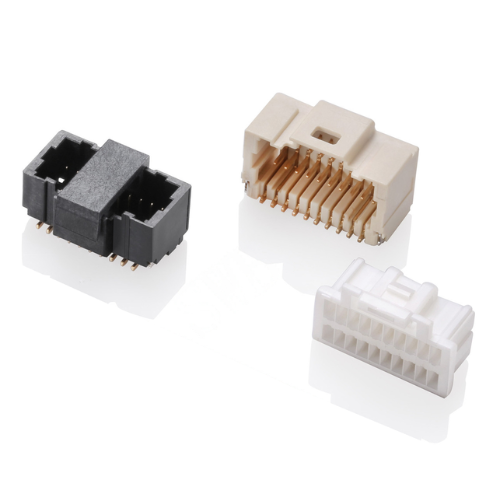

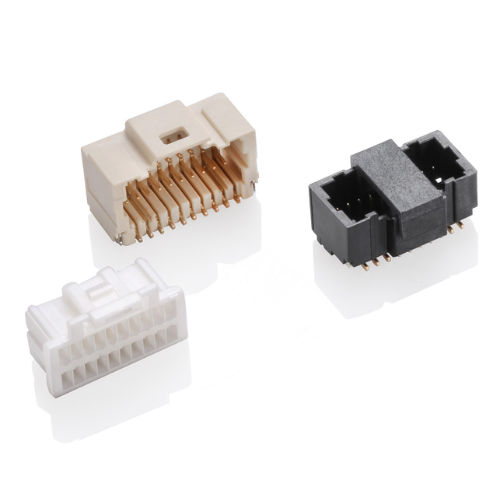

The JPC 1.00mm Pitch Wire-to-Board Connector is specifically designed for fine-pitch wire-to-board applications, supporting a wire gauge range from 28 AWG to 32 AWG. This connector series offers flexibility in design with vertical surface mount and right-angle surface mount configurations, making it ideal for compact and space-constrained applications.
Specifications
• Wire Range: 28-32 AWG
• Current Rating : 1A Max AC/DC
• Voltage Rating : 50-100V AC/DC
• Contact Resistance : ≤20mΩ
• Insulation Resistance : ≥100MΩ
• Withstanding Voltage:300V AC/Minute
• Temperature Range : -40℃~ +105℃
Applications
Target Markets
Consumer Home Appliances
Industrial & Instrumentation
Medical Monitor
Lighting Connector
