MCIO Cable

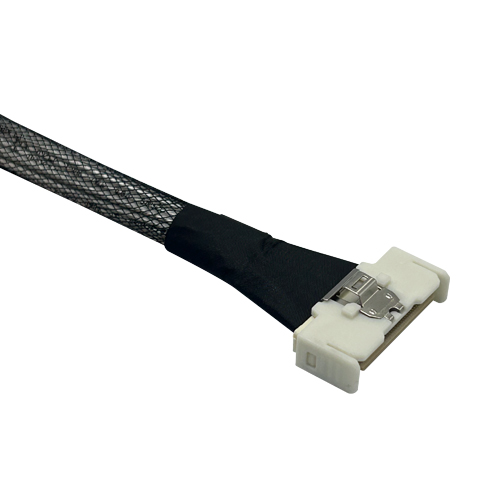

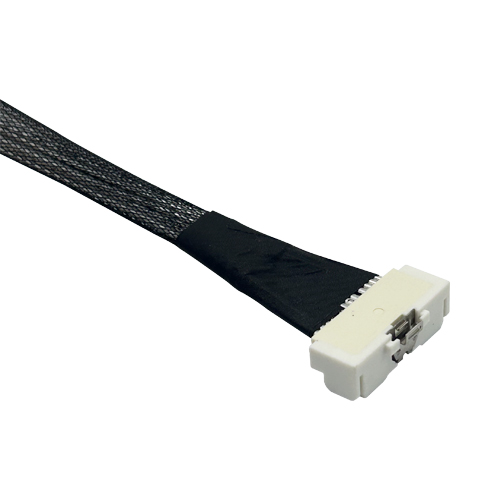

MCIO 8X Right Angle ( Low profile)

Overview/Description

JPC's MCIO low-profile (LP) solutions are smaller than mainstream solutions currently available on the market, helping to save space in end devices. When paired with a vertical connector, the mating height is reduced to just 12mm. The cable assembly features a slim form factor design, capable of transmitting high-speed signals up to PCIe Gen 6, while allowing for longer signal path lengths with superior SI performance compared to conventional PCB routing methods."

Specifications

• Pitch(mm): 0.6

• Number of Contacts : 74

• Gender: Plug End

• Termination Interface: Solder For Cable

• Current-Maxinum per contact: 0.5A

• Voltage Rating: 30V DC per contact max

• Dielectric Withstanding Voltage: 300V DC

• Durability: 200  Cycles

• Plating Contact area: See Customer Drawing

• Temperature Range - Operating: -25°C to +65°C

Applications
Target Markets

Server, Storage

Workstation

Switch

SAS/ PCIe Device

OCP DC-MHS

High-Performance Computing (HPC)
