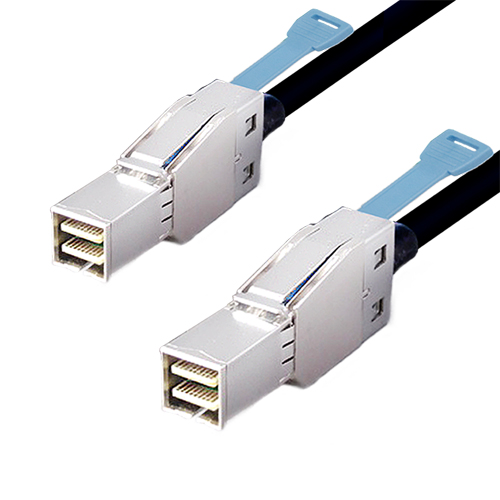

SFF 8644 External Mini SAS HD 4X & 8X ( High Density ) Cable Assemblies support next generation SATA & Serial Attached SCSI devices -- operating at a blazing fast 12.0 Gbps per lane as per the latest SAS 3.0 specifications and provide 85 Ohm for PCIe application.
Specification
• Type: Passive / Copper • End A =Mini SAS HD 4X (SFF 8644) • End B =Mini SAS HD 4X (SFF 8644) • Bend Radius = 5X OD (Compliant to SFF 8417) • Differential signal rate: Tx and Rx each 12 Gb/s x 4 pair • Impedance: 100 ohms differential, AC-coupled I/O • Temperature Range - Operating: -0°C to +70°C
Application/ Target Market
Server ,Storage, RAID Systems
Workstation
Switch
SATA/ SAS/ PCI-e Protocol
High-Performance Computing (HPC)
