HDMI 2.0 & 2.1 Connectors

HDMI 2.1 Type A Right Angle Female Connector without Flange, Top Mount SMT Type

HDMI 2.1 supports a range of higher video resolutions and refresh rates and resolutions up to 10K. Dynamic HDR formats are also supported, and bandwidth capability is increased up to 48Gbps.

HDMI 2.0 & 2.1 Connectors

HDMI 2.1 Type A Right Angle Female Connector with Flange, Top Mount SMT Type

HDMI 2.1 supports a range of higher video resolutions and refresh rates and resolutions up to 10K. Dynamic HDR formats are also supported, and bandwidth capability is increased up to 48Gbps.

DDR5

DDR5 DIMM

SMT type, Standard type, 0.85 mm pitch, 287 & 288 pins.

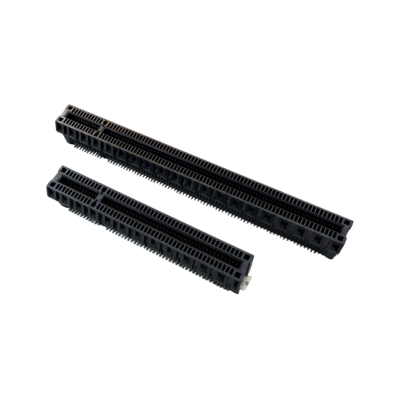

PCIe Gen5 Card Edge Connector

- PCIe Gen5 Card Edge Connectors - Pitch: 1.0mm - 98/164pin- with/ without latch- Vertical SMT

M.2 (PCIe Gen5)

M.2 (H=3)

It occupies less board space, offers more connector height options and supports higher data rates compared to PCIe Mini Card connector.
