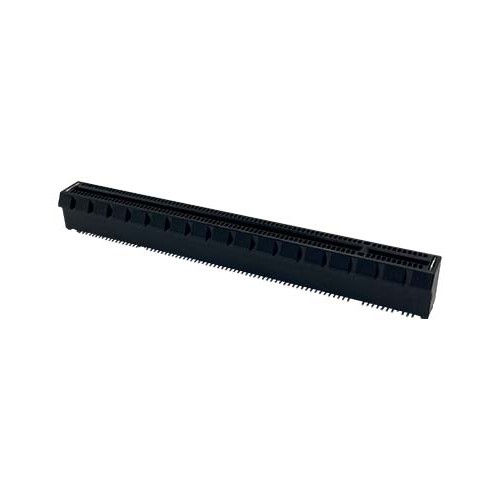

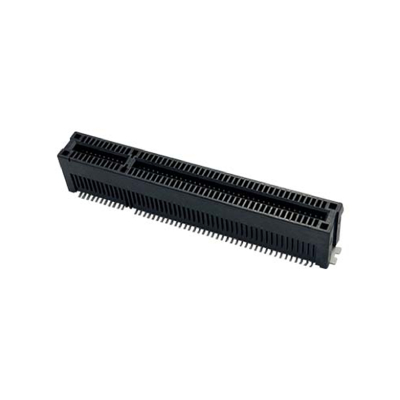

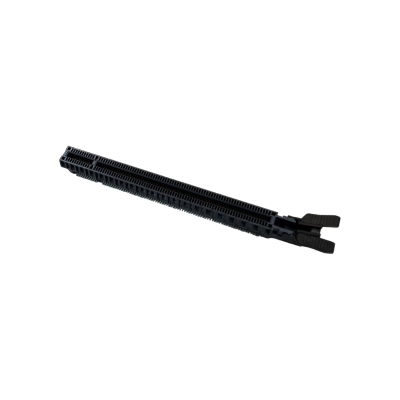

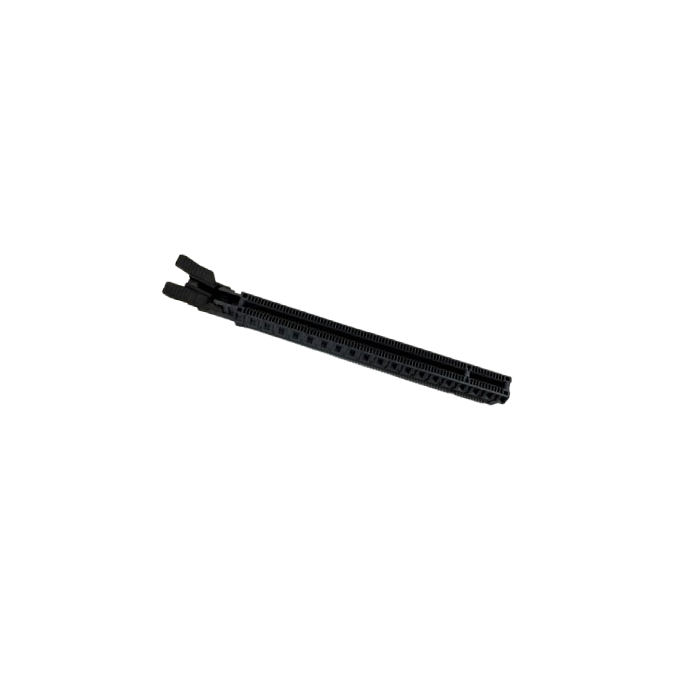

PCIe Gen5 Card Edge Connector


Specifications

• Pitch: 1.0mm

• Contacts: 98/164pin

• Orientation: Vertical

• Durability Rating: 50 cycles min.

• PCB Insertion Force: 1.15 N max. per contact pair

• PCB Removal Force: 0.15 N min. per contact pair

• RoHS Compliance • Capable to support up to 32GT/s

• 8X, 16X standard links as per PCI-SIG CEM specification footprint compatible


Overview/Description

• PCIe Card Edge Connectors

• PCIe Gen5

• SMT Type

* Samples available upon request.


Applications Target Markets

Servers

Workstations

Desktop PCs

Routers

Switches

Base Stations

Embedded Systems
