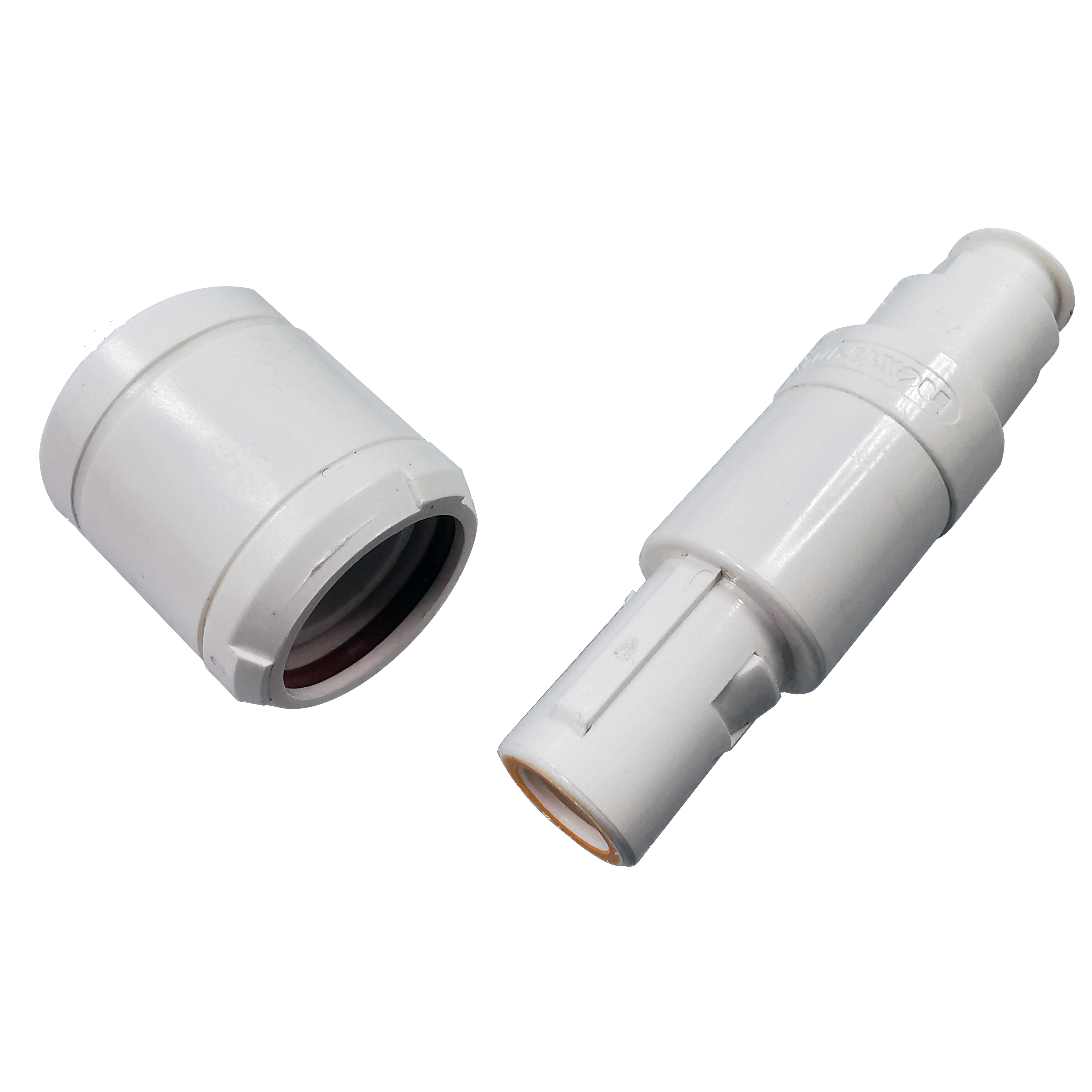

Push-Pull Circular Series Connectors

Watertight 1P series


Overview/Description

1. Push-Pull self-latching
2. Quick & Easy Mating and Un-mating
3. FDA Approved Biocompatible Materials (PSU or PEI)
4. Electrical Safety (Touch & Scoop Proof)
5. Multiple Key Options (6 Keyways)
6. IP64/IP67
7. Watertight and Disposable Connectors Available

Specifications

1. Connector Type: Straight Plug/Free Socket/Fixed Socket
2. Material(Metal/Plastic): Plastic
3. Nunber of Positions: 2 to 14
4. Termination: Solder/Print Contacts
5. Operation Temperature: -50°C~150°C(PSU)/-50°C~170°C(PEI)
6. Adopt Cross-Section Diameter of Wire: ø2.7 to 6.5 mm
7. Current Rating: 2 to 10A
8. Dielectric Withstanding Voltage: 0.6 to 1.2kVrms
9. Insulation Resistance: 10GΩ Min.
10. Durability: 2000 Cycles

Applications
Target Markets

Medical Equipment
Patient Monitors
Endoscope
Dental Laser and Footswitch
Electrode Cathode
Cosmetic Surgery
Respiratory Humidfier
CO2 Sensors
Ventilators
Aesthetic Devices
EP Catheters
Cardiac Assist and Mapping
Defibrillators
