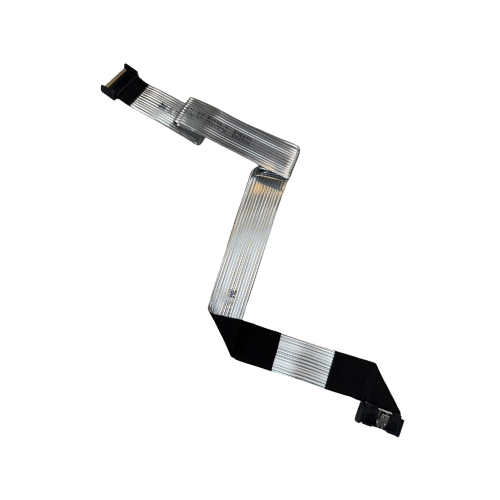

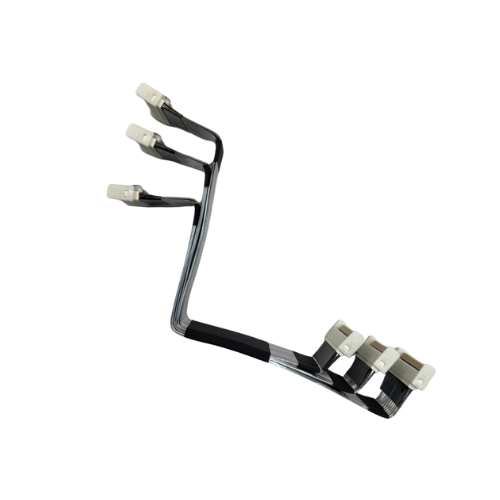

MCIO with 3M Flat Cable


Overview/Description

This MCIO cable assembly features a slim form factor design, capable of transmitting high-speed signals up to PCIe Gen 4 and PCIe Gen 5 standards. It allows for extended signal path lengths while maintaining superior signal integrity (SI) performance compared to conventional PCB routing methods. Additionally, JPC offers a variety of transmission channel options to suit different application needs.

1741923470_Flat Cable Assembly..jpg


Specifications

• Pitch(mm): 0.6

• Number of Contacts : 74

• Gender: Plug End

• Termination Interface: Solder For Cable

• Current-Maxinum per contact: 0.5A

• Voltage Rating: 30V DC per contact max

• Dielectric Withstanding Voltage: 300V DC

• Durability: 200 Cycles

• Plating Contact area: See Customer Drawing

• Temperature Range - Operating: -25°C to +65°C


Applications
Target Markets

Server ,Storage Workstation Switch SATA/ SAS/ PCIe Device High-Performance Computing (HPC)
