High Temperature Flat Cable

High Temperature Flat Cable PVC(125°C)


Overview/Description

Round Conductor Flat Cables have been designed for applications requiring space saving and temperature resistance. Insulated with PVC, these ribbon cables can be made with solid or stranded round conductors. Available in 0.635 mm and 2.54 mm pitches, these ribbon flat cables have also an excellent flex life.

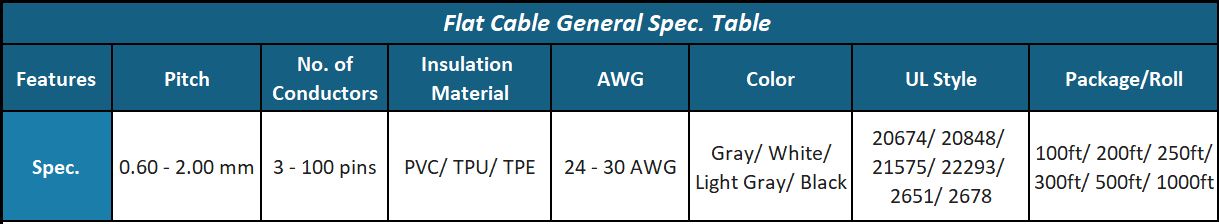

Specifications

1.Pitch : 0.635mm
2.Number of Conductors: 4~80pin
3.Conductor : 30AWG(7/38), Tinned Copper
4.Insulation
4.1 Material :Thermoplastic elastomer
4.2 Color: Gray
4.3 Concentricity: 65% Min.
5.Jacket : PVC
6.Rated temp : 125°C
7.Rate voltage:300V
8.Flame teat : FT2
9.RoHs
10.Roll: 250FT/500FT
