HSD Series

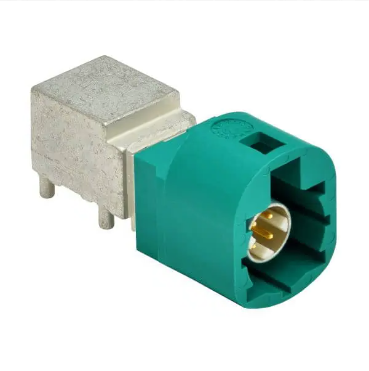

HSD Header Right Angle Shell Height=8.55mm Connector


Overview/Description

HSD supports state-of-the-art serializes/decometer technology at speeds up to 5Gbit/s. for better EMI performance and adaptation to different wire materials. Available in standard housing 14 keys and color coding.


Specifications

1. Impedance: 100Ω Differential Signalling
2. Frequency: DC to 2.0 GHz
3. Return Loss: ≥ 20 dB to 1.0 GHz
                            ≥ 17 dB to 2.0 GHz
4. Insertion Loss: ≤ 0.1 dB @ 1.0 GHz
5. Insulation Resistance: 1000MΩ Min.
6. Signal Contact Resistance: 10mΩ Max.
7. Mating Cycles: 25 Min.
8. Temperature Range: -40°C to +105°C
9. Coding:A / B / C / D / E / F / Z / G / H / J / K / L / M/ O
10. Connector Type : PCB Top-Mount
11. Packing: Tape & Reel

Applications
Target Markets

Advanced Driver Assistance Systems (ADAS)
Multimedia
Infotainment
GPS
Navigation
