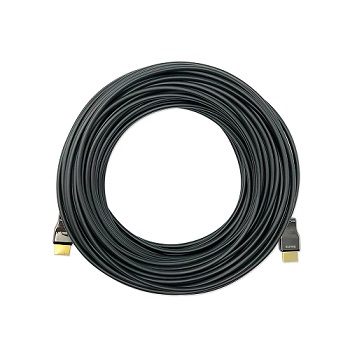

HDMI 2.0 Armored AOC Cable

Overview/Description

1. Super slim armored HDMI Active Hybrid Cable.

2. With only 3.8mm OD and short HDMI plug.

3. The most slim Armored HDMI interconnection solution.

4. Supports HDMI Data Rate 6Gbps per channel, total 18Gbps with strong construction.

5. Flexible and ultra-small long-term bending radius (38mm) hybrid cable.

6. With our advanced optical engine embedded.

7. This HDMI Hybrid Cable provides full HDMI signal integrity.

8. Support up to 30m maximum length, plug and play.

9. No external power required.

Product Spec.pdf
Product Drawing.pdf

Specification

1. Units : Transmitter (Source) / Receiver (Sink)
2. HDCP ＆ DDC : HDCP 2.2 Fully Support bi-directional EDID and HDCP communication
3. Video Bandwidth : 6 Gbps/x 3Channel
4. Supported Resolution ＆ Distance : WUXGA 1920X1200 up to 30 meters, HDTV: 480p, PC:720p,1080i and 1080p deep color, 4K, up to 30 meters
5. O/E Converter : 4 channel 850 nm VCSEL array / 4 CH GaAs PD array
6. Connector Type : HDMI type A
7. Cable Type : Armored Hybrid type with OM3 fiber and copper wire
8. Cable Length : 5m/10m/15m/20m/30m(with +/-30cm tolerance) Custom length available.
9. Cable Outer Diameter : 3.8mm
10. Jacket Outer Material : TPU(Custom)
11. Differential Input : 100 ohm (typ)
12. Power Consumption : 250mW (max)
13. Power Supply : Non external power required

Application/ Target Market

1. Digital Signage 2. LED signboards in streets and in stadiums 3. Medical Imaging Equipment 4. Airplane On-board Video System 5. Home Theater 6. Blue-ray, 3D video, Projector, Set-up box, DVR, Game Consoles and Computer 7. TV Broadcast Station 8. Conference Room Video Equipment 9. Security systems
