EDSFF E3 1C Hybrid Cable


Overview/Description

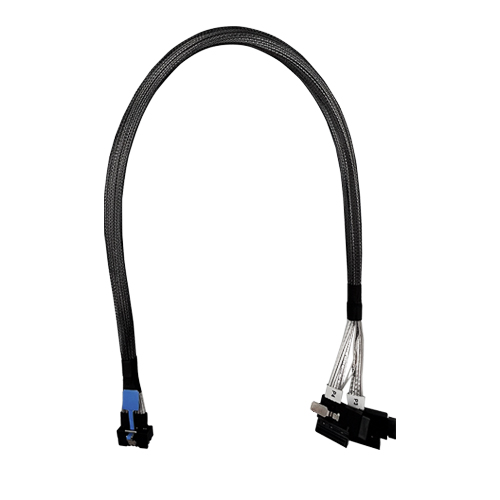

EDSFF E3 high-speed cable assembly enables the transmission of power and high-speed signals through a cable that connects directly to the main PC board, supporting EDSFF E3 SSDs and CXL or other modules. This 2-piece EDSFF cable solution supports PCIe® 5.0 data rates of up to 32Gb/s. One end of the cable features EDSFF standard Mini Cool Edge 1C connectors, while the other end offers flexible connector form factor options such as MCIO, Multi-Trak, Backplane connectors, and more.

Specifications

• Contact Resistance: Maximum 15mΩ after testingDifferential

• Impedance: 85Ω ± 8.5ΩCurrent

• Rating: 1.1A per pin, with a maximum of 6 adjacent pins per side, totaling 12 pins

• SI Performance: PCIe® Gen 5


Applications
Target Markets

Servers, Data Center
