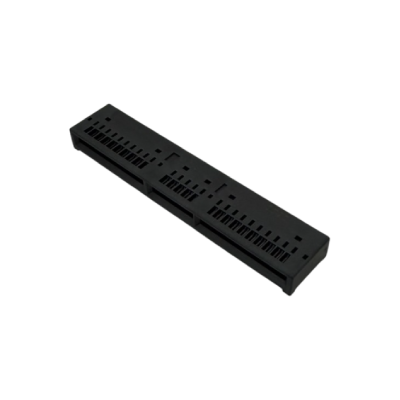

EDSFF 4C Right Angle Connector

Specifications

• Pitch(mm): 0.6

• Number of Contacts : 140

• Orientation: Right Angle

• Gender: Receptacle

• Current Maximum per contact:  1.1 A /pin up to 12 pins.

• Voltage Rating: 29 V

• Dielectric Withstanding Voltage: 300 V

• AC Durability: 200 Cycles

• Plating Contact area: See Customer Drawing

• Temperature Range - Operating: -40°C to +85°C

Overview/Description

• Meets SFF-TA-1002, GEN Z, EDSFF and OCP NIC 3.0 specification

• PCIe Gen5

• Right Angle Receptacle

• SMT Type

* Samples available upon request.

Applications Target Markets

Storage Server, Workstation

AI/GPU Server

High-Performance Computing (HPC)
