4.20mm Pitch Power Connector


Overview/Description

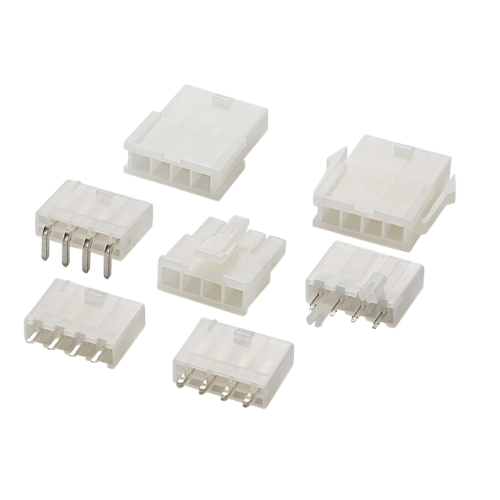

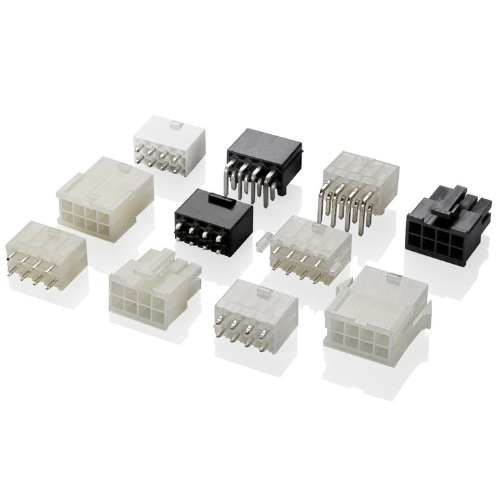

JPC 4.20mm pitch power connectors are designed for wire-to-board applications, including single row and dual-row configurations. Fully isolated terminals protect the contacts from potential damage during handling and mating, minimizing the risk of shorting due to debris.

Specifications

•  Row : Single/ Dual Row

•  Wire Range: 16-26 AWG

•  Current Rating : 9A Max AC/DC

•  The Current Rating of High Conductivity Coopper : 12 AC/DC

•  Voltage Rating : 600V AC/DC

•  Contact Resistance : ≤10mΩ

•  Insulation Resistance : ≥1000MΩ

•  Withstanding Voltage:1500V AC/Minute

•  Temperature Range : -25℃~ +85℃


Applications
Target Markets

Telecommunications

Data Storage & Server

Consumer Home Appliances

Industrial & Instrumentation
