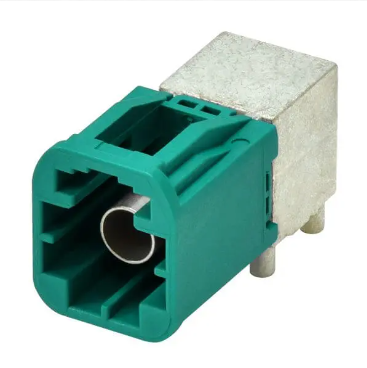

1x1 Mini FAKRA Right Angle Plug PCB Top-Mount Connector
Specifications
1. Impedance: 50Ω
2. Frequency: DC to 9GHz
3. Insulation Resistance: 1000MΩ Min.
4. Center Contact Resistance: 15mΩ Max.
5. Outer Contact Resistance: 5mΩ Max.
6. Test Voltage: 800Vrms Max.
7. Working Voltage: 60V DC Max.
8. Power Current: 1A DC Max.
9. Operation Temperature: -40°C to +105°C
10. Mating Cycles: 25 Min.
11. Coding：A / B / F / Z
12. Connector Type : PCB Top-Mount
13. Packing : Tape & Reel
