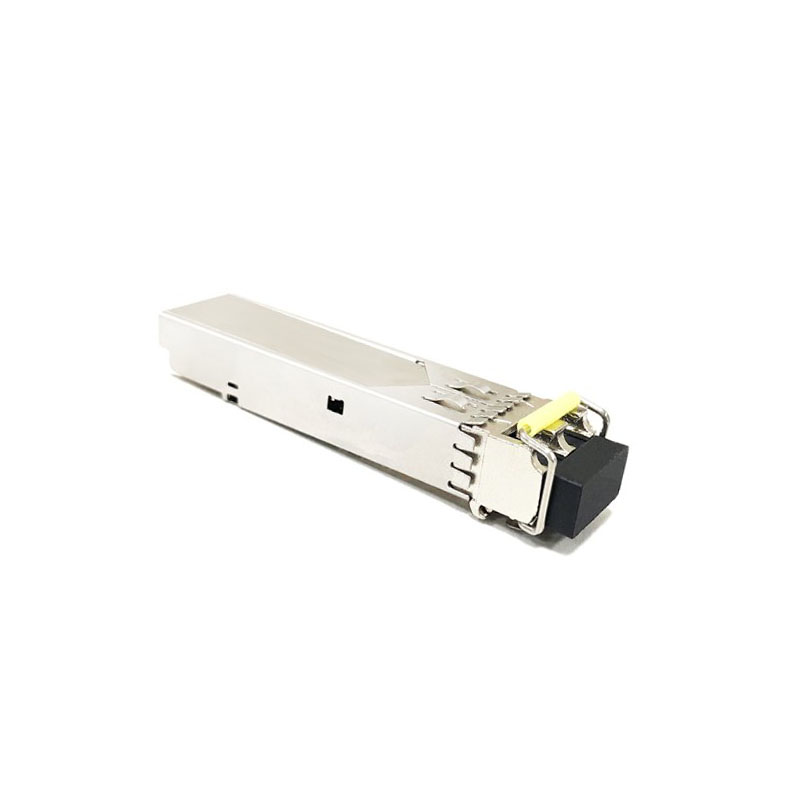

1G SFP ZX


Overview/Description

The family of Small Form Factor Pluggable (SFP) transceiver module is specifically designed for the high-performance integrated duplex data link over single mode. These transceiver modules are compliant with the SFP Multisource Agreement (MSA). With the hot plug ability, these modules offer an easy way to be installed into SFP MSA compliant ports at any time without the interruption of the host equipment operating online. The 1G ZX SFP transceivers using a long wavelength (1550nm) DFB laser diode enable data transmission up to 80km on a single-mode (9/125μm) optical fiber.

Specifications

Operating Data Rate up to 1.25Gbps
1550nm DFB Laser Transmitter
80km with 9/125 µm SMF
Single 3.3V Power Supply and TTL Logic Interface
Hot-Pluggable SFP Footprint Duplex LC Connector Interface
Built-in digital diagnostic functions, including optical power monitoring
Compliant with MSA SFP Specification
Compliant with SFF-8472

Applications
Target Markets

Compliant with SFP MSA
1.0625Gbps Fibre Channel FC-PI
100-SM-LC-L compliant
1.25Gbps IEEE 802.3 1000BASE-ZX
