1G DWDM

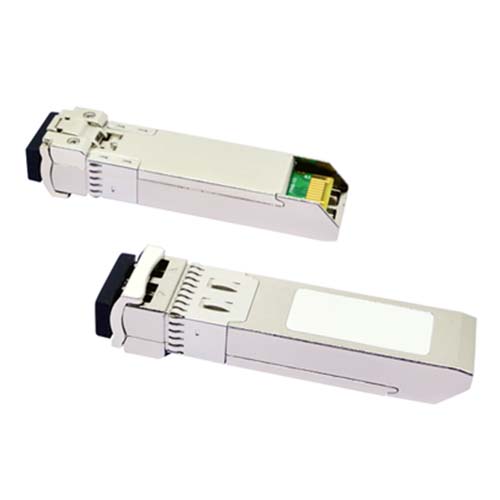

1G SFP DWDM


Overview/Description

The SFP+ transceiver supports up to 120km link lengths over single-mode fiber (SMF) via an LC duplex connector. This transceiver is compliant with SFF-8431 and SFF-8432 MSA standards. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be deployed in the DWDM networking equipment in metropolitan access and core networks.


Specifications

•  Supports 1.25 Gb/s bit rates

•  Duplex LC connector

•  Hot pluggable SFP+ footprint

•  Cooled EML transmitter and APD receiver

•  Applicable for 120km SMF connection

•  Low power consumption, < 1.5W

•  100 GHz channel spacing

•  Digital Diagnostic Monitor Interface

•  Optical interface compliant to ITU-T 694.1& G.698.1

•  Electrical interface compliant to SFF-8431& SFF-8432

•  Operating case temperature: Industrial: 0 to 70°C  / -40 to 85 °C


Applications
Target Markets

1.25G Ethernet

ITU-T G.698.1

Other optical links
