Overview/Description

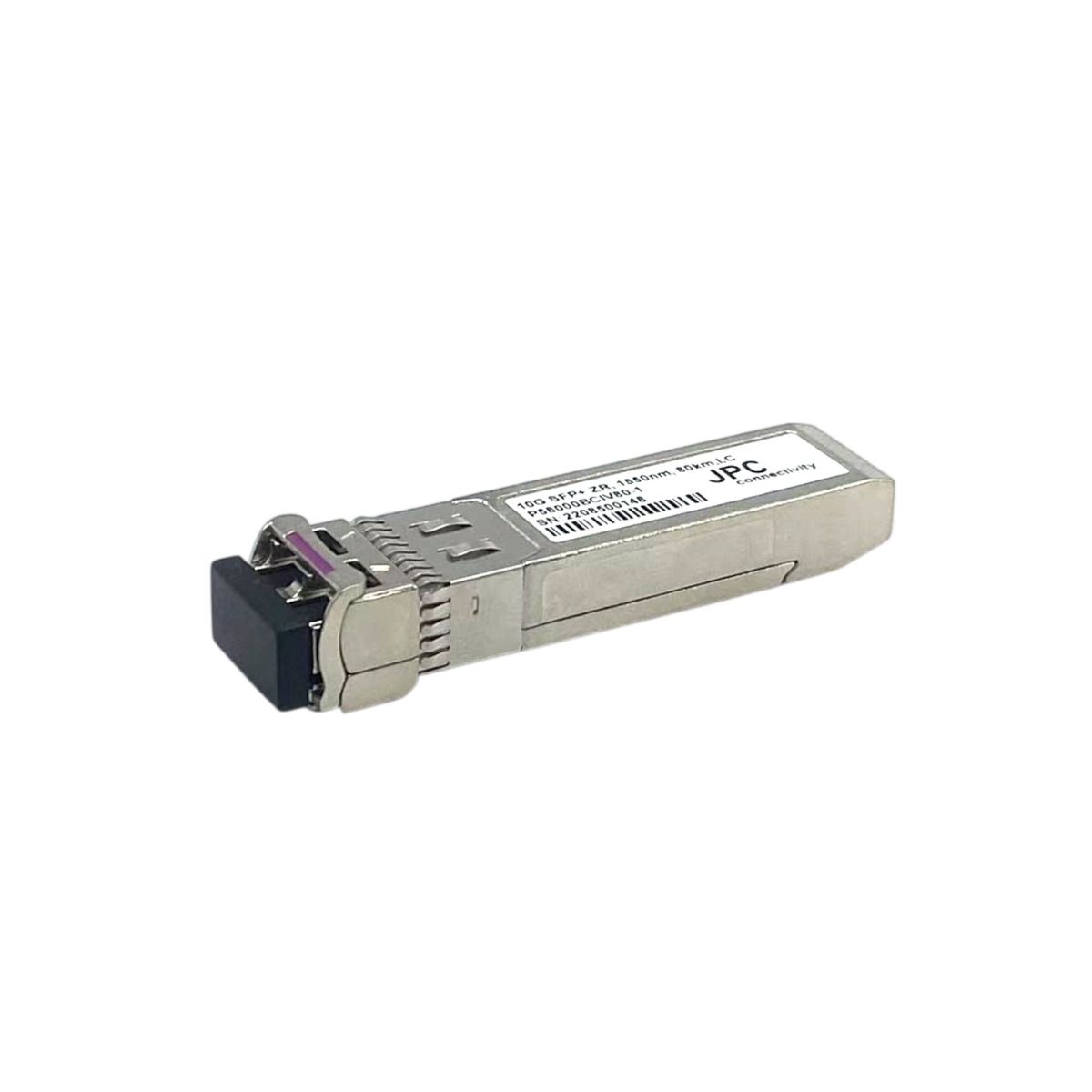

The laser based 10Gigabit SFP+ Transceiver is designed to transmit and receive serialoptical data over single mode optical fiber with 80Km.
They are compliant with SFF-8431, SFF-8432, 10GFC Rev 4.0, and 10GBASE ZR/ZW. The transmitter converts seria l EML electrical data into serial optical data compliant with the IEEE 802.3ae standard. The receiver converts serial optical data into serial EML electrical data.
Digital diagnostics functions are available via a 2 wire serial interface, as specified in SFF-8472.
Specifications
Compliant to SFP+ MSA
Fully RoHS Compliant
All metal housing for superior EMI performance
Operating data rate up to 10Gbps
High sensitivity APD photodiode and TIA
LC duplex connector
Hot pluggable 20pin connector
Low power consumption <2W
-40℃ to 85℃ operating wide temperature range
Single +3.3V±5% power supply
Digital Monitoring SFF-8472 Rev 10.2 compliant
