RJ45 Jack Series

RJ45 Stacked Modular Series

RJ45 Jack Connector


Overview/Description

1. Meet or exceeds IEEE 802.3 standard, Support 10/100/1000 Base-T.
2. RJ45 connector

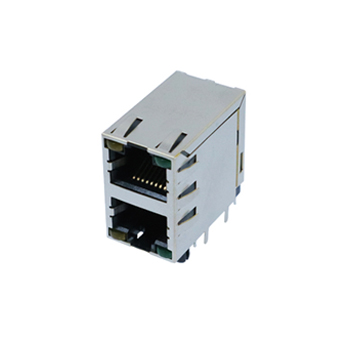

3. Stackable Modular Jack, RJ45, 2x1, Side Entry, W/LED, W/Shell, DIP

Specifications

1. Connector type: RJ45 8p8c
2. Port Number: 2x1 port
3. LED: Y
4. Shell: Y
5. Length(mm): 28.15
6. Width(mm): 16.51
7. Hight(mm): 25.4
8. Side Entry
9. DIP
10. Relative humidity = 70%±10% RH
11. Operating temperature = -40℃~80℃
12. Current rating = 1A MAX
13. Voltage Rating = 150V AC MAX.


Applications
Target Markets

Communication Equipment: Telephone, Fax machine
Network Equipment: Modem, Hub, Switch, Router, Gateway, Repeater, Bridge, PC motherboard, Note PC (Note book)
