Overview/Description
1.Rechargeable lithium-ion battery pack
2.Capacity: Set for 2 support 5kWh
3.Charger:Independent charger
Specifications
1. Battery Pack Capacity: 43200mAh
2. Battery Cell Configuration: 14S10P
3. Battery Pack Nominal Voltage: 51.66V
4. End Voltage: 35V
5. Nominal Charge Voltage: 58.1V
6. Nominal Charge Current: 10A
7. Max Continuous Charge Current: 14.4A, 0℃~25℃, 0.3C
8. Max Continuous Discharge Current: 48A, 25℃~40℃, 1.0C
9. Max Peak Discharge Current: 100A
10. Charging Method: CC/CV
11. Charge Time: Around 5.5 hours
12. Operation Temperature: Charge: 0~+45℃, Discharge: -20~55℃
13. Communication interface: CAN Bus
14. Weight ≤15Kg
15. Dimension: 166.74mm x 172.69mm x 302.90mm (341.38mm with handle)
Applications
Target Markets

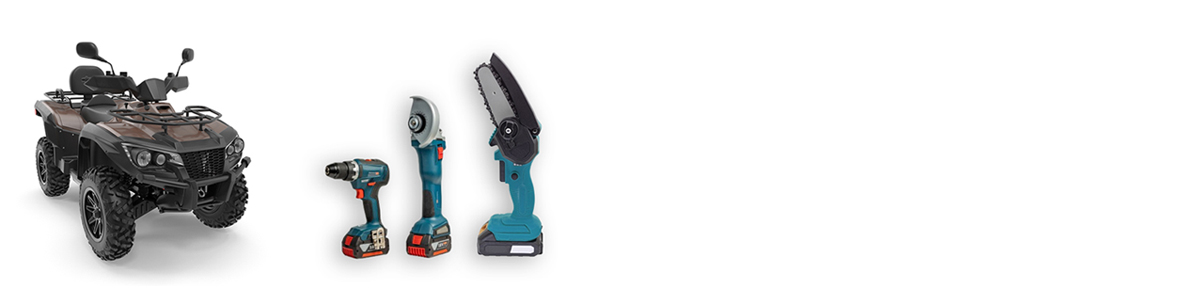

Applications: LEV
