Overview/Description

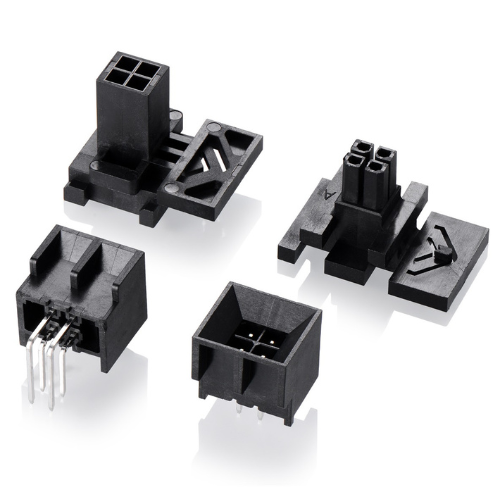

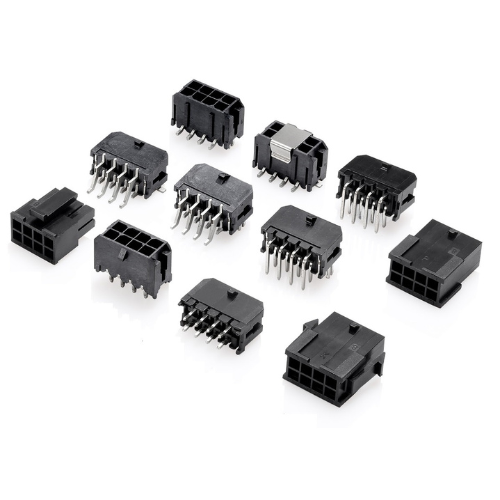

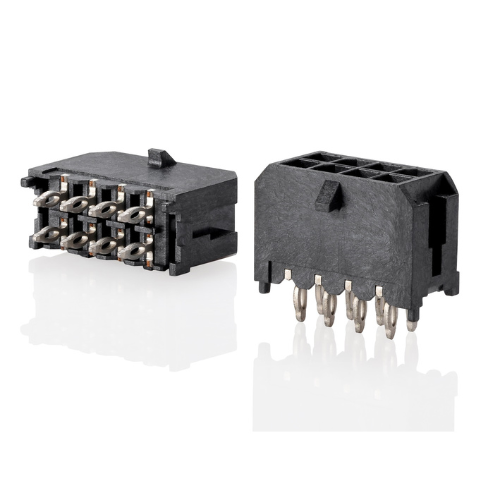

JPC 3.00mm pitch power connectors are designed for board-to-board, wire-to-board, and wire-to-wire applications.The fully isolated terminals protect the contacts from potential damage during handling and mating, minimizing the risk of shorting due to debris.
Specifications
• Row : Single/ Dual Row
• Wire Range: 20-30 AWG
• Current Rating : 5A Max AC/DC
• Voltage Rating : 250V AC/DC
• Contact Resistance : ≤10mΩ
• Insulation Resistance : ≥1000MΩ
• Withstanding Voltage:1000V AC/Minute
• Temperature Range : -40℃~ +105℃
Applications
Target Markets
Telecommunications
Data Storage & Server
Consumer Home Appliances
Industrial & Instrumentation
