Overview/Description

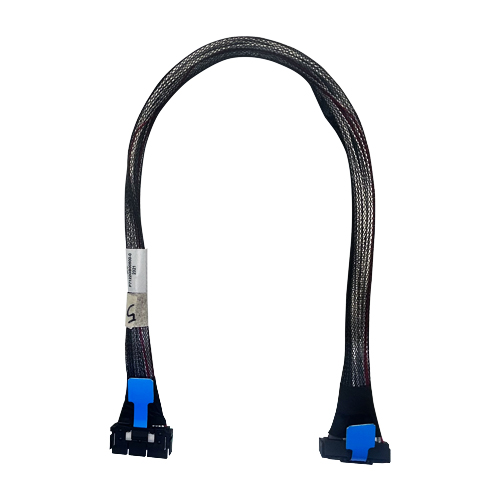

The Gen-Z cable assembly is a high-density, modular interconnect product designed to offer excellent flexibility and signal integrity for high-speed data transmission. It supports SI performance up to PCIe Gen 4 and Gen 5, with multiple channel configurations available. Customization options are also offered to meet specific requirements.
Specifications
• Pitch(mm): 0.6
• Number of Contacts : 84
• Gender: Plug End
• Termination Interface: Solder For Cable
• Current-Maxinum per contact: 1.1A/pin up to 12pins.
• Voltage Rating: 29V
• Dielectric Withstanding Voltage: 300V
• AC Durability: 200 Cycles
• Plating Contact area: See Customer Drawing
• Temperature Range - Operating: -40°C to +85°C
Applications
Target Markets
Storage Server, Workstation
AI/GPU Server
High-Performance Computing (HPC)
