Specifications

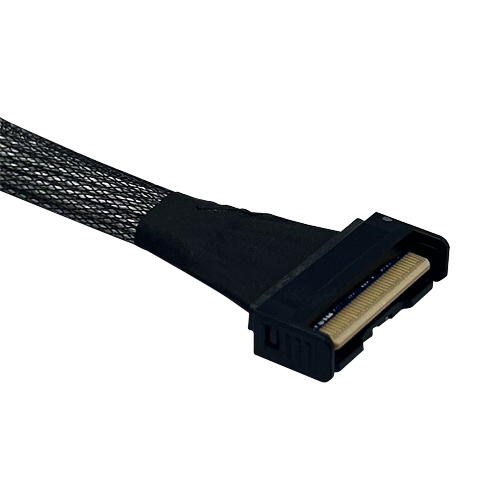

MCIO
• Pitch(mm): 0.6
• Number of Contacts : 74
• Voltage Rating: 30V DC per contact Max.
• Dielectric Withstanding Voltage: 300V DC
• Durability: 200 Mating Cycles
• Contact Area Finish: Gold over Nickel
• Operating Temperature: 0°C to 65°C

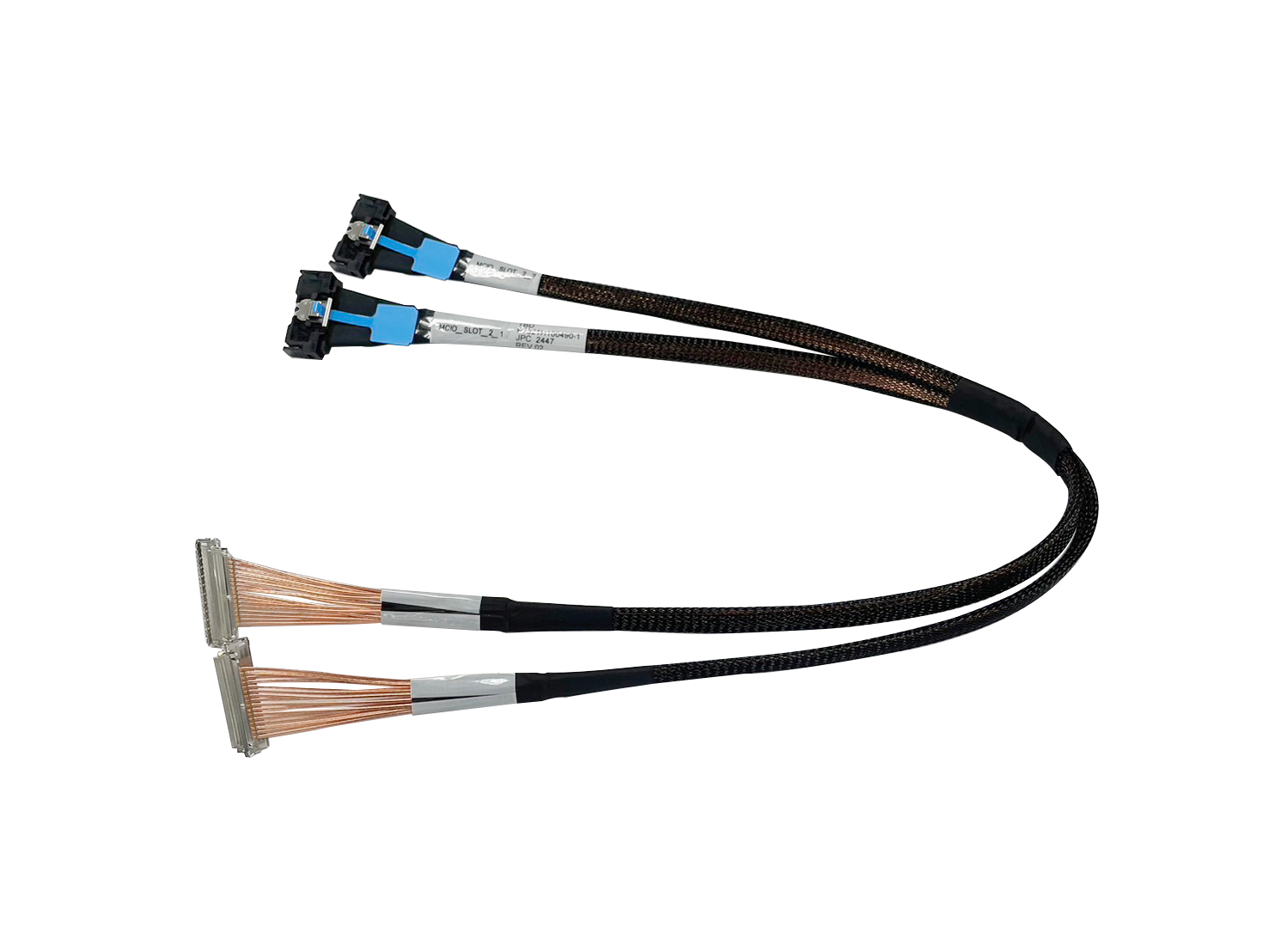

I-PEX
• Contact Pitch (mm): 0.4
• Height (mm): 1.3 Max
• Available Pin Count: 60
• Current Rating: 0.4A per contact Max.
• Fine Coaxial Wire (AWG): #36 #38
• Twinax Cable (AWG): #34
• Mating Type: Horizontal
Overview/Description
Supports PCIe Gen6 64Gbps/Lane PAM4 signaling via advanced paddle card technology. Its compact design features a 1.14 mm mating height and advanced EMI shielding which ensures optimal SI.
Applications Target Markets
AI Server
Server
Storage
Workstation
Switch
OCP DC-MHS
High-Performance Computing (HPC)
